What Cylinder Liners Do and Why They Wear

Inside a running diesel engine, the cylinder liner is exposed to some of the most demanding operating conditions of any engine component. On every combustion cycle, the piston and its rings travel the full length of the liner bore under extreme pressure and temperature, making direct contact with the liner wall through a film of engine oil that is only a few microns thick at its thinnest point.

Over time and under load, several distinct wear mechanisms attack the liner surface:

• Abrasive wear — microscopic particles in the combustion gases and engine oil gradually erode the bore surface, increasing clearance between the piston rings and liner wall
• Corrosive wear — combustion by-products form acidic compounds that chemically attack the liner surface, particularly at low operating temperatures where condensation occurs
• Cavitation erosion — in wet-liner configurations, high-frequency vibration from combustion pressure creates vapour bubbles in the coolant that collapse against the liner's outer wall, pitting and eroding the surface from the outside in
• Scuffing and scoring — inadequate lubrication, particularly during cold starts or following an overheating event, causes direct metal-to-metal contact between the piston and liner wall

As liner wear progresses, piston ring seal deteriorates, blow-by increases, oil consumption rises, and compression drops across affected cylinders. Left unaddressed, a worn liner accelerates wear throughout the entire lower engine assembly.

Wet Liners vs Dry Liners: Understanding Your Engine Configuration

The type of cylinder liner fitted to your diesel engine determines both how it wears and how it is replaced. Understanding the difference is important before sourcing replacement liners.

Wet Cylinder Liners

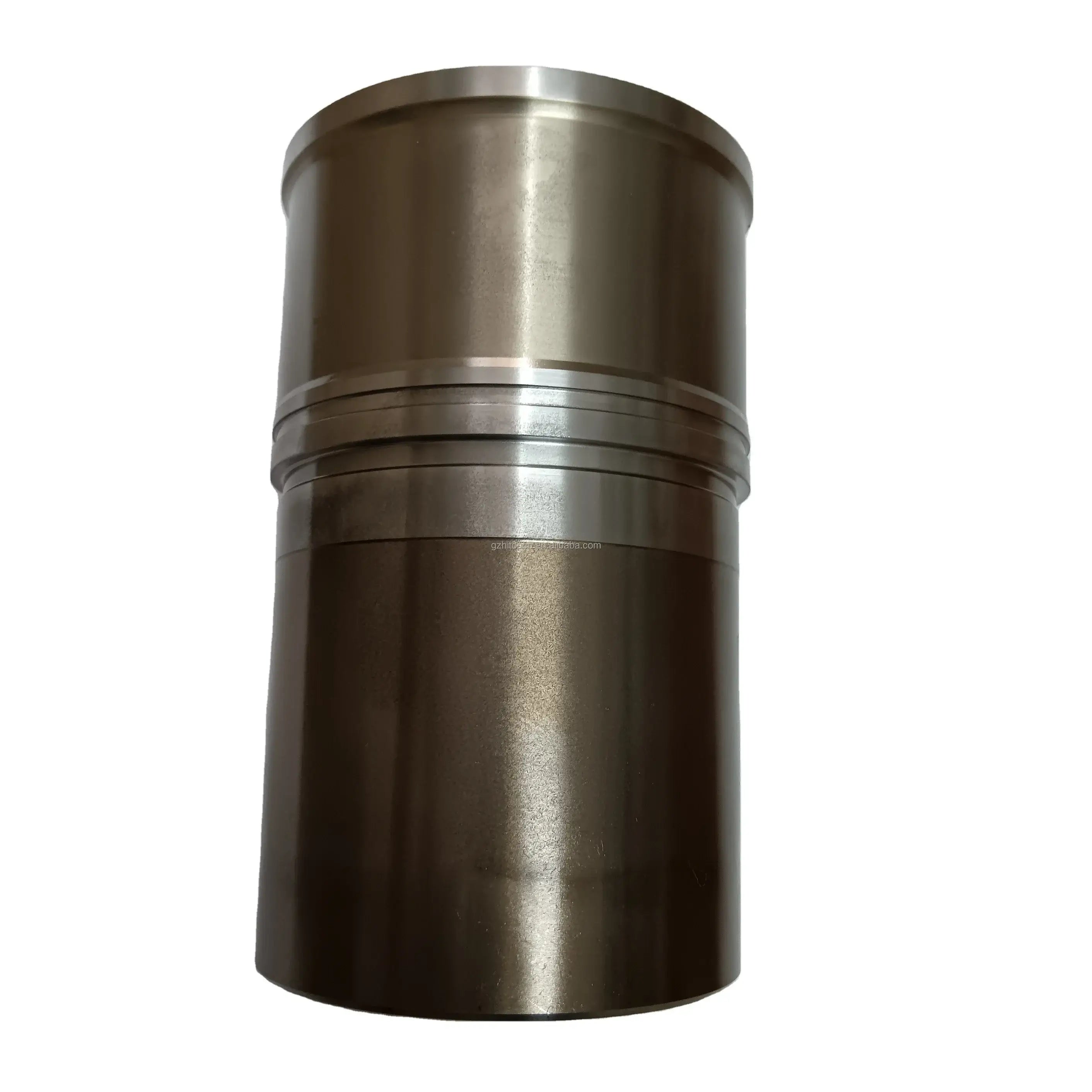

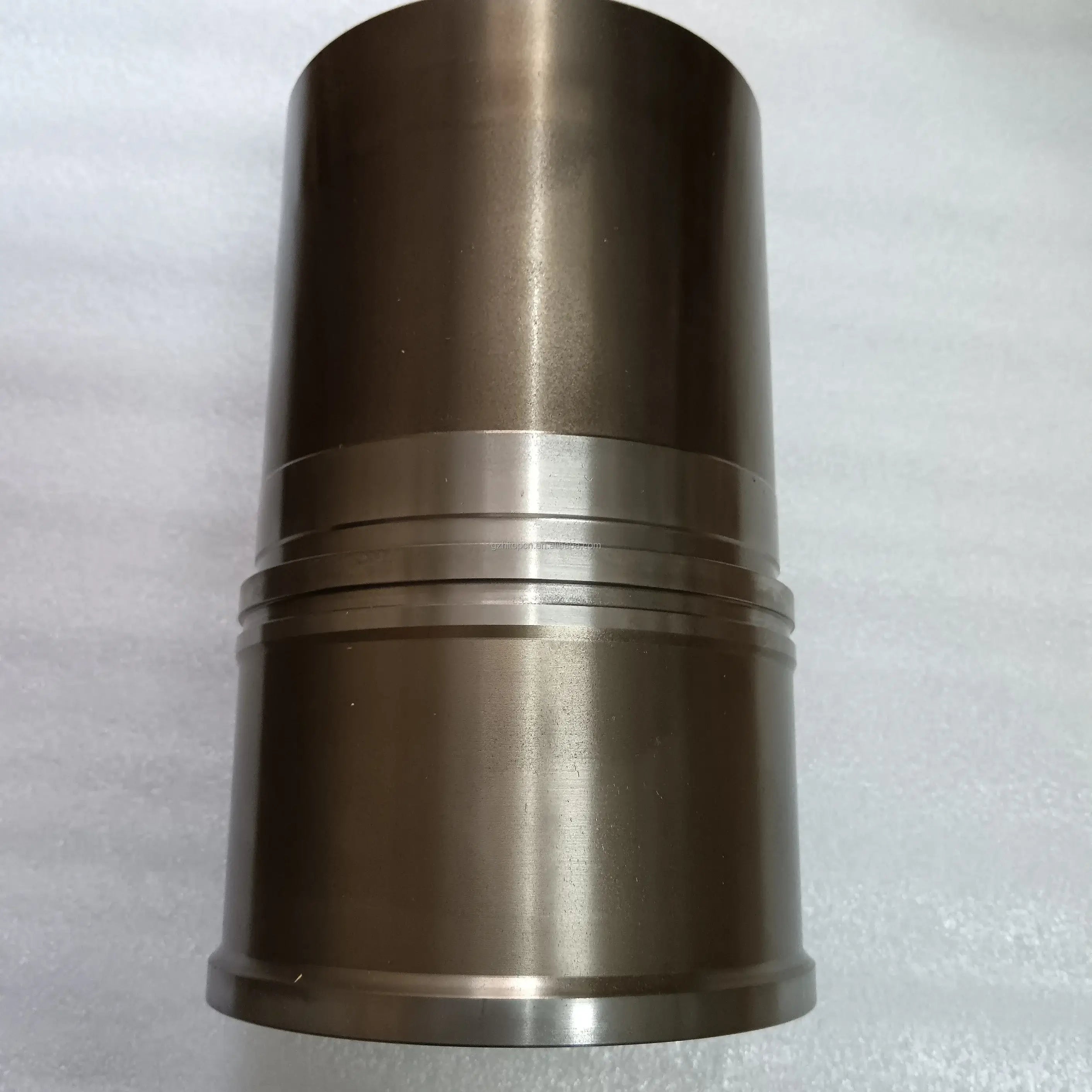

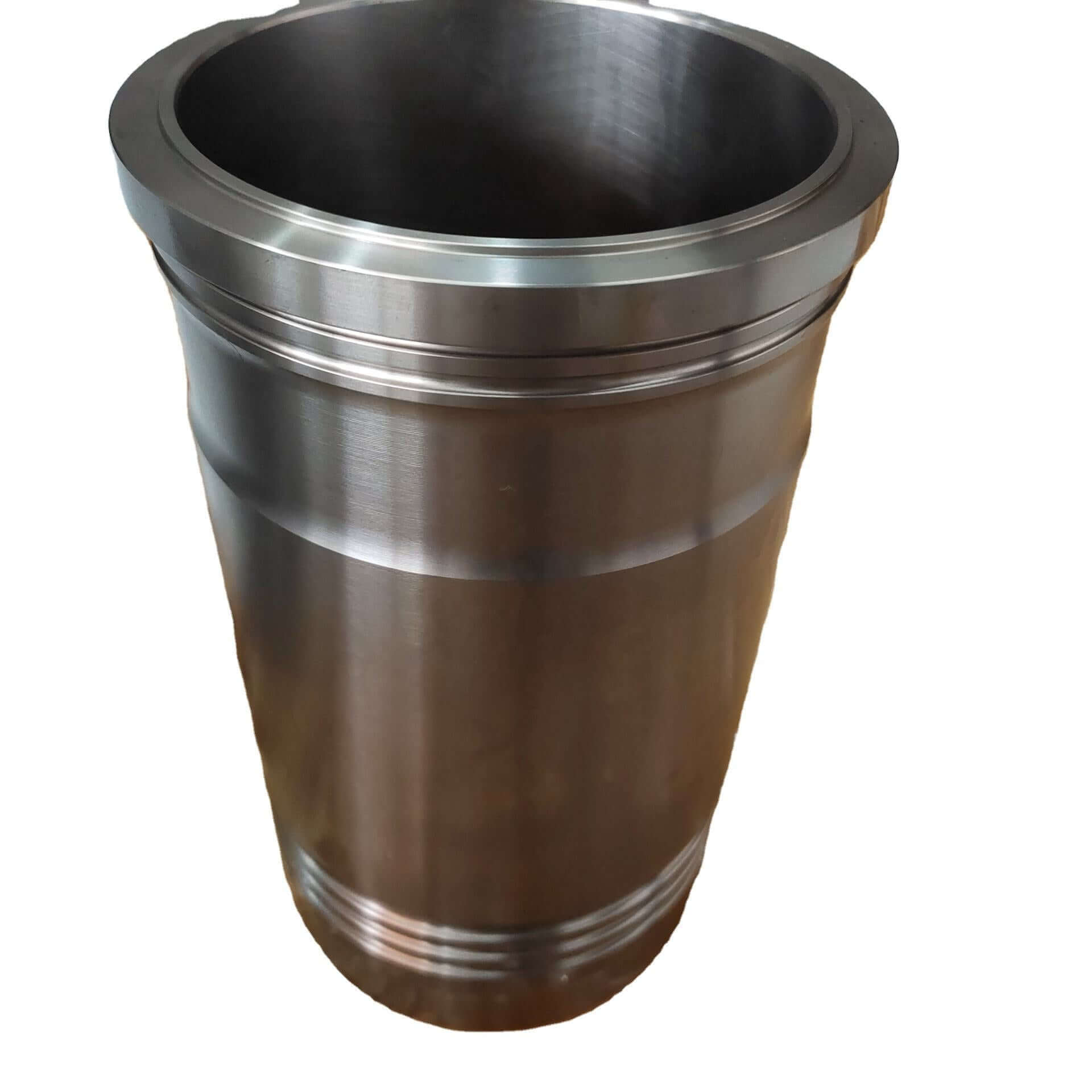

Wet liners are in direct contact with the engine coolant on their outer surface. They are self-supporting within the engine block and seal against the block at their upper and lower flanges using compression seals and O-rings. This design provides excellent heat transfer from the piston and combustion chamber to the cooling system, but it also creates the cavitation erosion risk described above. Wet liners are the standard configuration in most Caterpillar and Komatsu heavy diesel engines, including the CAT C15, 3406E, and Komatsu PC200-8.

Dry Cylinder Liners

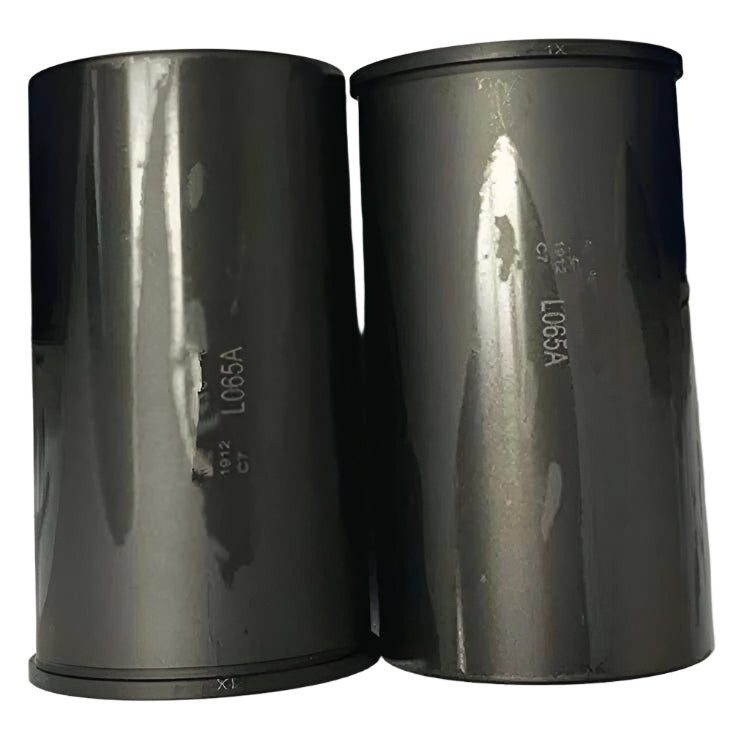

Dry liners are pressed into a parent bore in the engine block, with the block itself forming the coolant jacket. They rely on an interference fit with the block for retention and heat transfer. Dry liners are thinner than wet liners and are more commonly found in lighter diesel applications, though some heavy diesel platforms use dry liner configurations in their engine block designs.

Imara Engineering stocks wet liner configurations for all major heavy diesel platforms in our range. Our team will confirm the correct liner type and specification for your engine before dispatch.

CAT Cylinder Liners: Platform Coverage

Caterpillar diesel engines are the most widely rebuilt heavy machinery powerplants in the industry, and CAT cylinder liners, particularly for the C15 and 3406 family, are among the highest-demand components in our range. The wet-liner configuration used across the CAT engine family makes liner condition a critical factor in any overhaul assessment.

Our CAT cylinder liners range covers:

• CAT C15 & C15 ACERT — the highest-demand platform in our liner range, available as individual liners or in matched full-set configurations for a complete C15 engine rebuild
• CAT 3406E & 3406B — one of the most rebuilt CAT engine families in existence, with strong and ongoing demand for replacement cylinder liners
• CAT 3306 — a widely deployed legacy platform with strong parts availability across our range
• Other Caterpillar cylinder block variants — contact our team with your engine serial number to confirm availability for your specific platform

All CAT cylinder liners are manufactured to OEM bore diameter, wall thickness, and flange specification, with liner shim sets available for C15 applications requiring precise protrusion height adjustment above the block deck.

Komatsu Cylinder Liners: PC200-8 and Heavy Excavator Platforms

Komatsu excavators are among the most widely operated heavy machines in the construction and mining industries globally, and cylinder liner wear in Komatsu engines is a well-documented consequence of the high-cycle operating profiles these machines run under. The Komatsu PC200-8 is the highest-demand Komatsu platform in our liner range, reflecting its widespread deployment across global construction and earthmoving fleets.

Our Komatsu cylinder liners range covers:

• Komatsu PC200-8 — the most widely replaced Komatsu liner in our range, available in individual and matched set configurations
• Other Komatsu heavy excavator platforms — contact our team with your machine and engine serial number to confirm availability

All Komatsu cylinder liners are manufactured to OEM dimensional specifications for correct bore geometry and coolant seal performance.

Signs Your Cylinder Liners Need Replacing

Cylinder liner wear rarely causes sudden failure. It develops progressively, and the warning signs are consistent enough that experienced operators and workshop technicians learn to recognise them before they escalate into full engine damage.

Key indicators that your cylinder liners need inspection or replacement:

• Rising oil consumption with no visible external leak — oil is passing the worn piston ring and liner wall interface and being combusted
• Blue or grey exhaust smoke under load — a consistent indicator of oil consumption through a worn bore
• Compression loss across one or more cylinders on a leakdown or compression test
• Excessive crankcase pressure and blow-by — combustion gases bypassing the worn liner and ring interface and pressurising the sump
• Visible bore wear, scoring, or pitting on internal inspection — taper wear at the top of the liner bore is the most common finding
• Coolant contamination of the engine oil on wet-liner engines, indicating a failed liner lower seal allowing coolant into the sump

If you are seeing any combination of these symptoms, contact Imara Engineering before ordering components. Our team can help you assess whether liner replacement alone is sufficient or whether a full bottom-end rebuild is the more reliable path.

What to Replace at the Same Time as Your Cylinder Liners

Cylinder liner replacement is most effective and most reliable when the associated components are replaced in the same overhaul. Fitting new liners to worn pistons or old ring sets negates much of the benefit of the liner replacement and risks accelerated re-wear from the first hours of operation.

At Imara Engineering, we recommend sourcing the following alongside your cylinder liners:

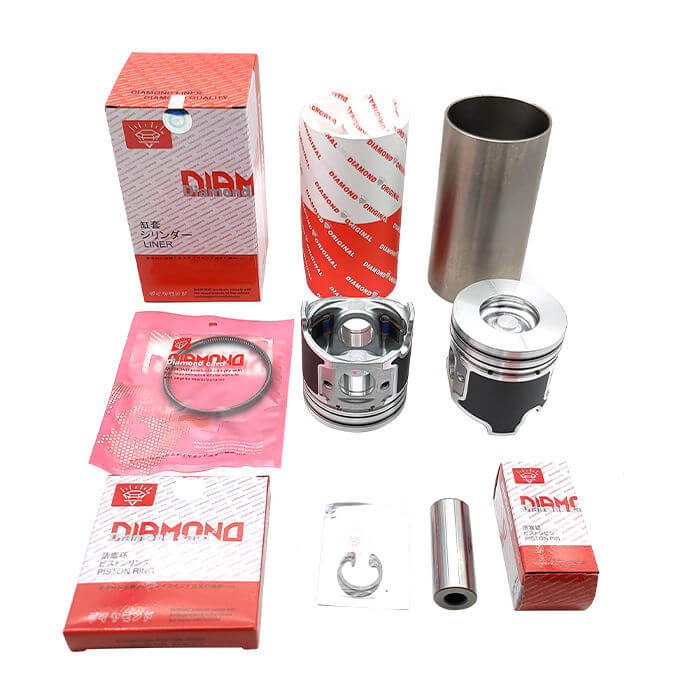

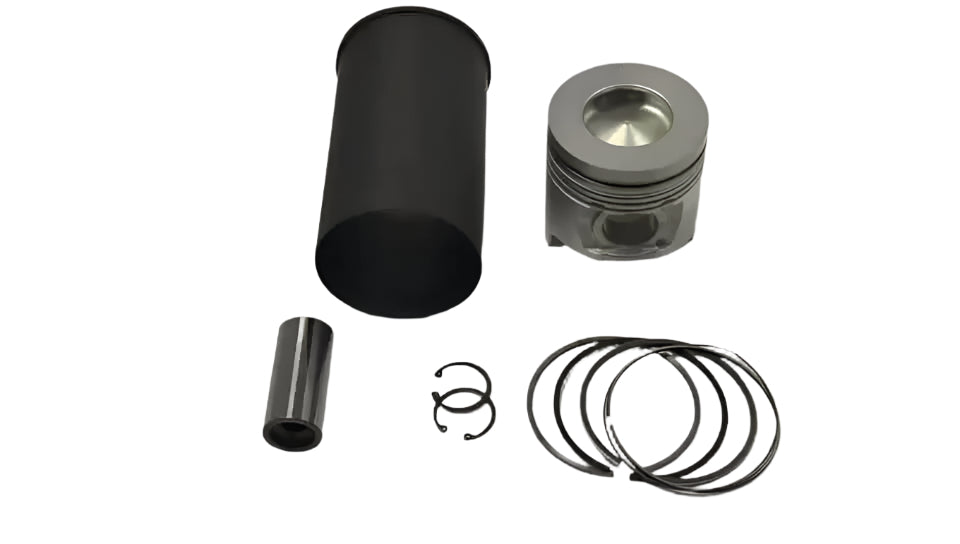

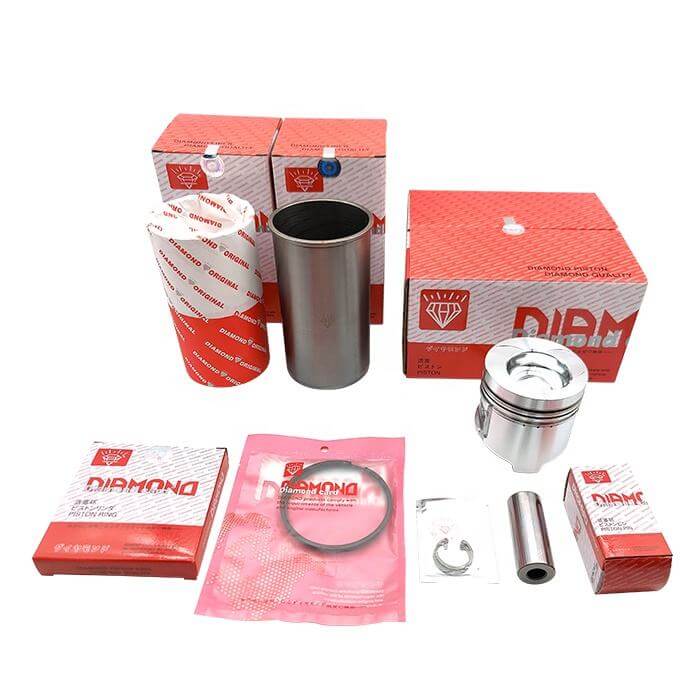

• Pistons and piston rings — new liners require new rings for correct bore bedding and ring seal. Check our Pistons & Rings range for matched sets across all major platforms.
• Liner O-rings and lower seals — on wet-liner engines, the coolant seals at the lower flange must always be replaced when the liner is removed to prevent immediate coolant contamination
• Liner shim sets — on CAT C15 applications, protrusion height above the block deck must be set within OEM specification before the cylinder head is torqued down
• Cylinder head gasket kit — if the head is coming off as part of the liner replacement, a new gasket kit is always required. Browse our Gasket Kits and Rebuild Kits range for full platform coverage.

Our team can consolidate all components into a single order, reducing lead time, sourcing administration, and the risk of a missing component stopping your rebuild mid-way through.

Why Source Your Cylinder Liners from Imara Engineering?

Workshop managers and fleet operators across Australia, North America, Canada, and globally choose Imara Engineering for cylinder liners because we understand that a liner is not just a commodity component; it is the wear surface your entire lower engine assembly depends on.

• OEM Dimensional Tolerances — Bore diameter, wall thickness, flange height, and surface finish are all manufactured to OEM specifications. Correct liner geometry is what makes a rebuild last.
• Confirmed Fitment Before Dispatch — Engine serial number and block specification are cross-referenced before every order ships. The right liner for your exact engine variant is confirmed, not assumed.
• Individual or Matched Sets — Whether you are replacing a single liner or doing a full engine rebuild, we supply the configuration that suits your overhaul scope.
• Associated Components in One Order — Pistons, rings, seals, shims, and gasket kits are available alongside your liners to consolidate your rebuild sourcing into a single order.
• Fast Worldwide Shipping — Dispatching to Australia, USA, Canada, and internationally with full tracking and fast turnaround on all in-stock items.
