Hydraulic Motors for Excavators: Travel Motors & Swing Motors for Komatsu, CAT, Hitachi & More

A hydraulic motor is the rotational output component of your excavator's hydraulic parts system, converting the high-pressure fluid flow generated by the hydraulic pump into the mechanical torque and rotational force that physically drives your machine's movement and upper structure rotation. At Imara Engineering Supplies, we supply a complete range of OEM-quality excavator hydraulic motors, cross-referenced to your specific machine model and serial number.

Hydraulic motor failure on an excavator is rarely subtle. Left unaddressed, a degraded motor does not just affect performance; it places additional load back onto the hydraulic pump and control valves, accelerating wear across the entire circuit. Imara Engineering stocks high-demand travel and swing motor assemblies in ready inventory for fast dispatch across Africa and internationally.

Compare (0/5)

74 products

Swing Motor 4325475 for Hitachi EX75UR Excavator

Swing Motor 4325475 for Hitachi EX75UR Excavator

Regular price $4,450.00
Sale price $4,450.00 Regular price $2,000.00
Swing Motor YX32W00002F for Kobelco SK115SR Excavator

automotive

Swing Motor YX32W00002F for Kobelco SK115SR Excavator

Regular price $4,600.00
Sale price $4,600.00 Regular price
Swing Motor 31N6-10210 / 31N610210 for Hyundai R210LC-7

Hydraulic Swing Motors

Swing Motor 31N6-10210 / 31N610210 for Hyundai R210LC-7 Excavator – Slew Drive Hydraulic Component

Regular price $4,895.00
Sale price $4,895.00 Regular price
Komatsu Final Drive Coupling Kit | GM18 Motor PC100-6 Series

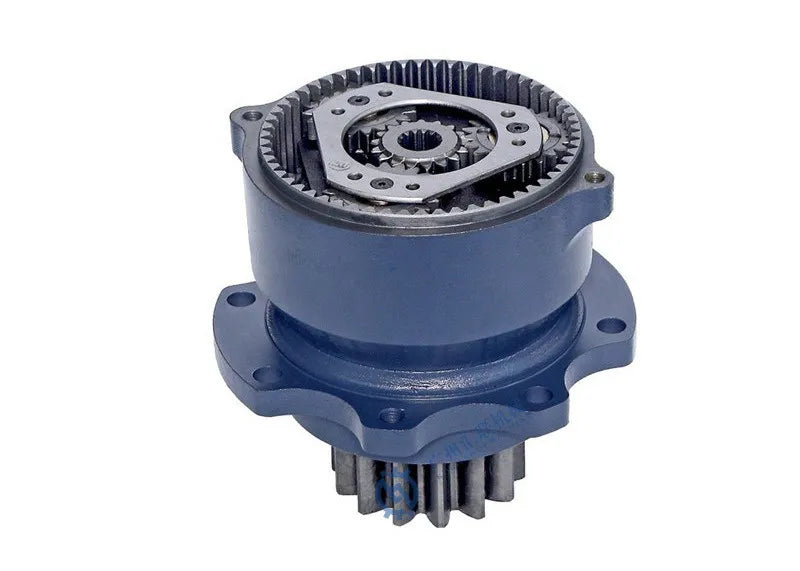

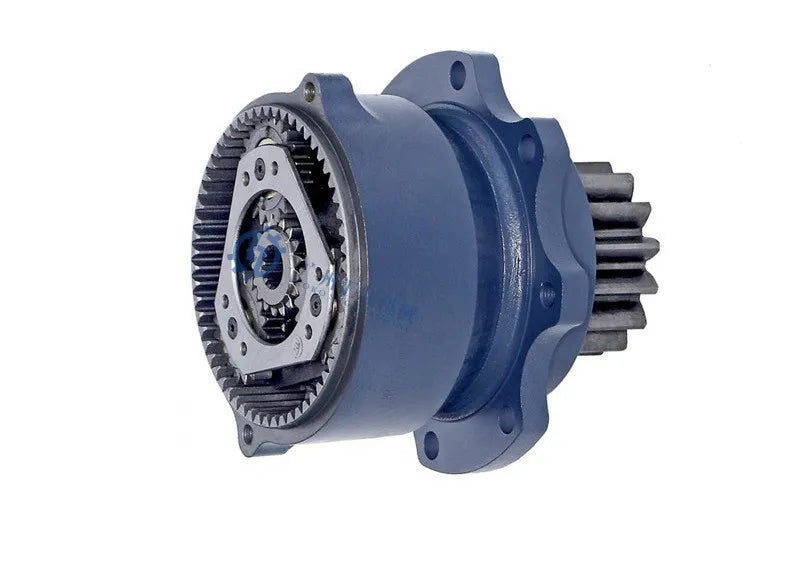

Hydraulic Swing Motor 170303-00034 for Doosan DX60R DX60 Excavator

Hydraulic Swing Motor 170303-00034 for Doosan DX60R DX60 Excavator

Regular price $4,139.00
Sale price $4,139.00 Regular price

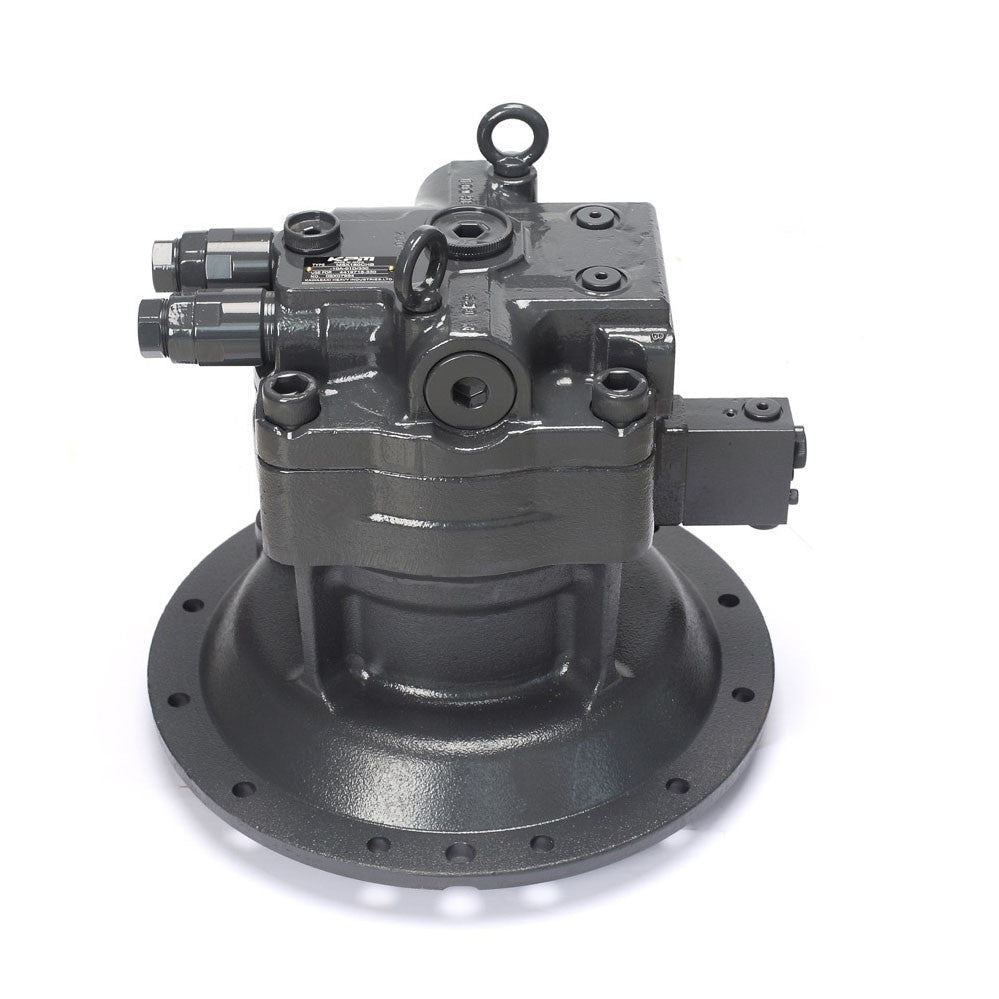

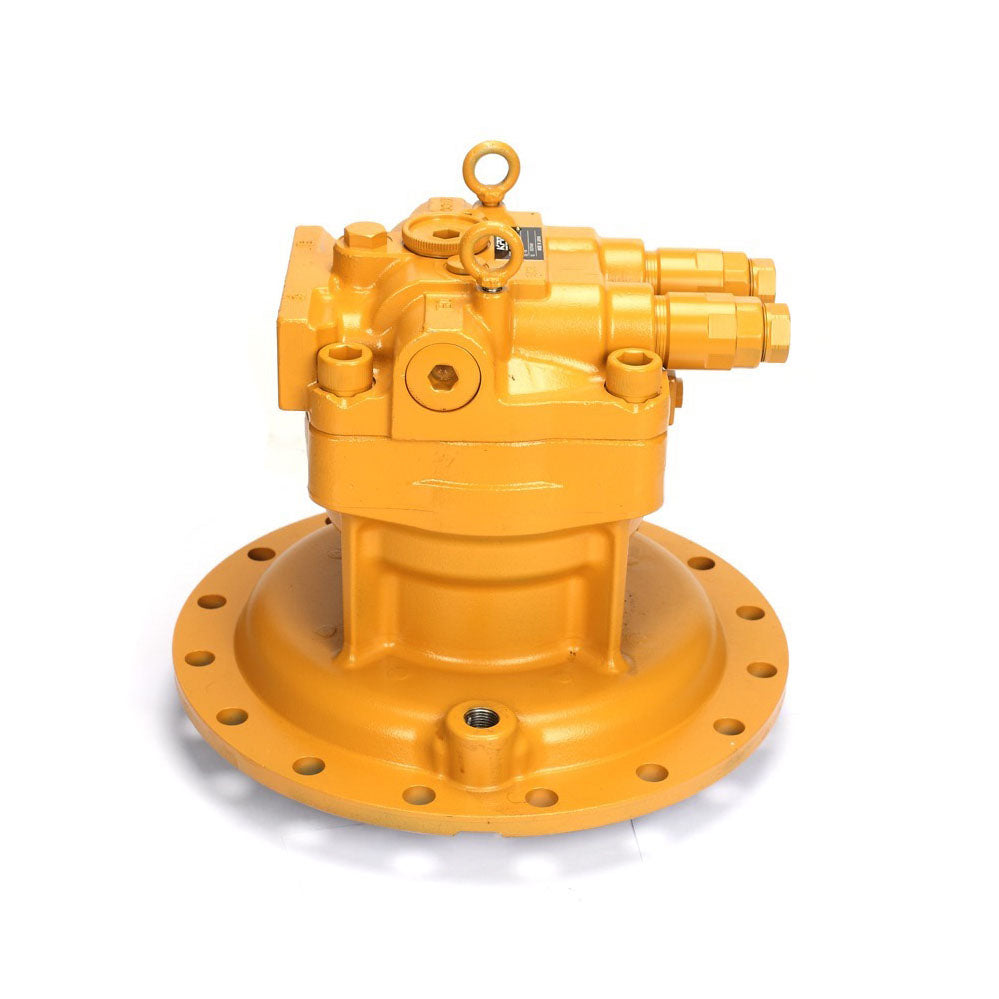

Hydraulic Swing Motor 401-00003B for Doosan S130-3 S130W-V Excavator

Hydraulic Swing Motor 401-00003B for Doosan S130-3 S130W-V Excavator

Regular price $4,139.00
Sale price $4,139.00 Regular price

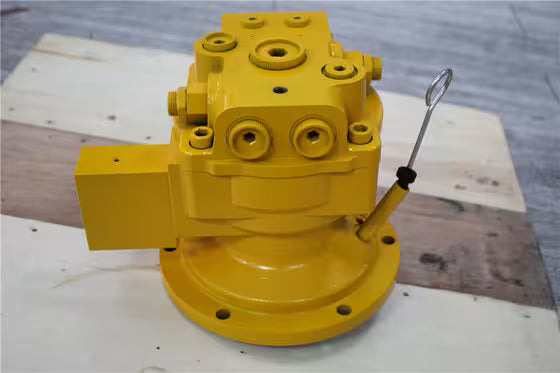

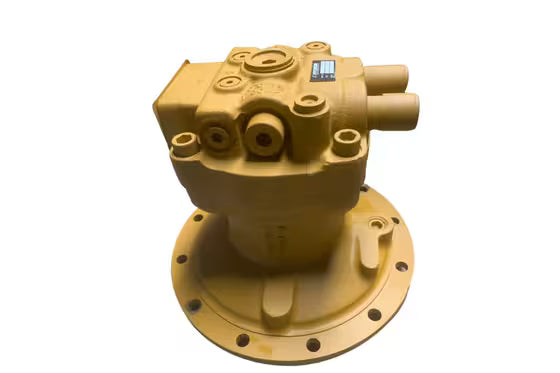

Hydraulic Swing Motor 170303-00039 for Doosan DH80 DH80-7 Excavator

Hydraulic Swing Motor 170303-00039 for Doosan DH80 DH80-7 Excavator

Regular price $3,486.00
Sale price $3,486.00 Regular price
Hydraulic Motor MS05-9-G24-F04-1710-257EJM for Poclain MS Series Machinery

Hydraulic Motor MSE11-1-D11-R11-0000-5D00 for Poclain MSE Series Machinery

Regular price $4,379.00
Sale price $4,379.00 Regular price $2,196.00

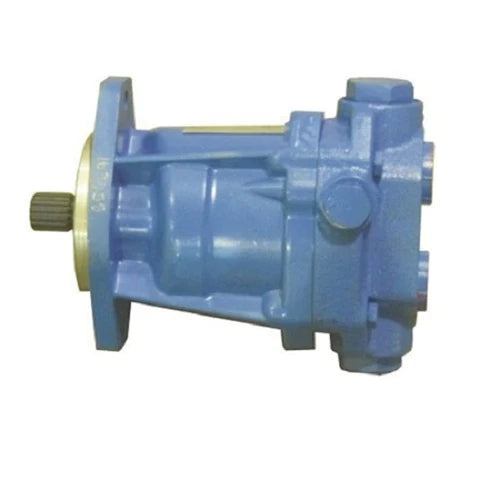

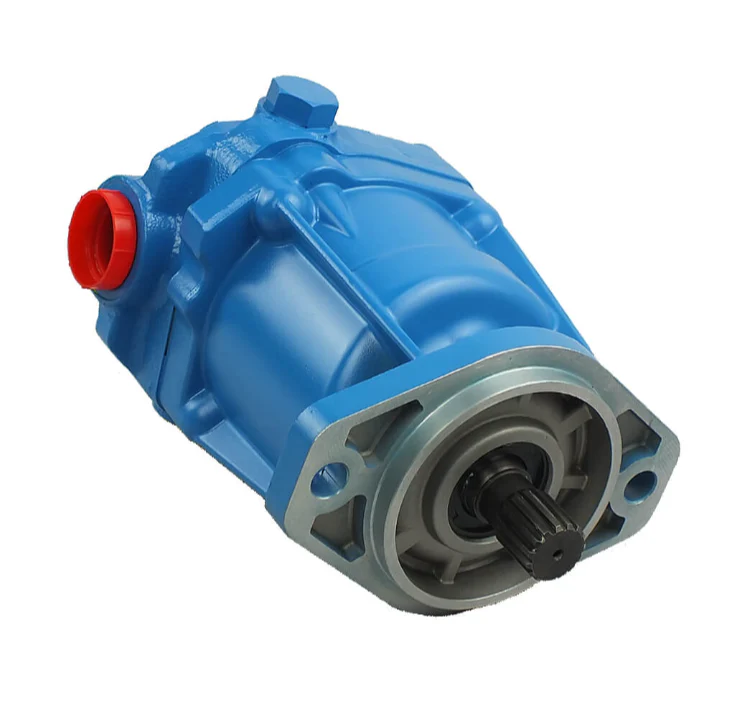

Hydraulic Motor B210074 for Bell 225A Loader

Hydraulic Motor B210074 for Bell 225A Loader

Regular price $1,671.00
Sale price $1,671.00 Regular price

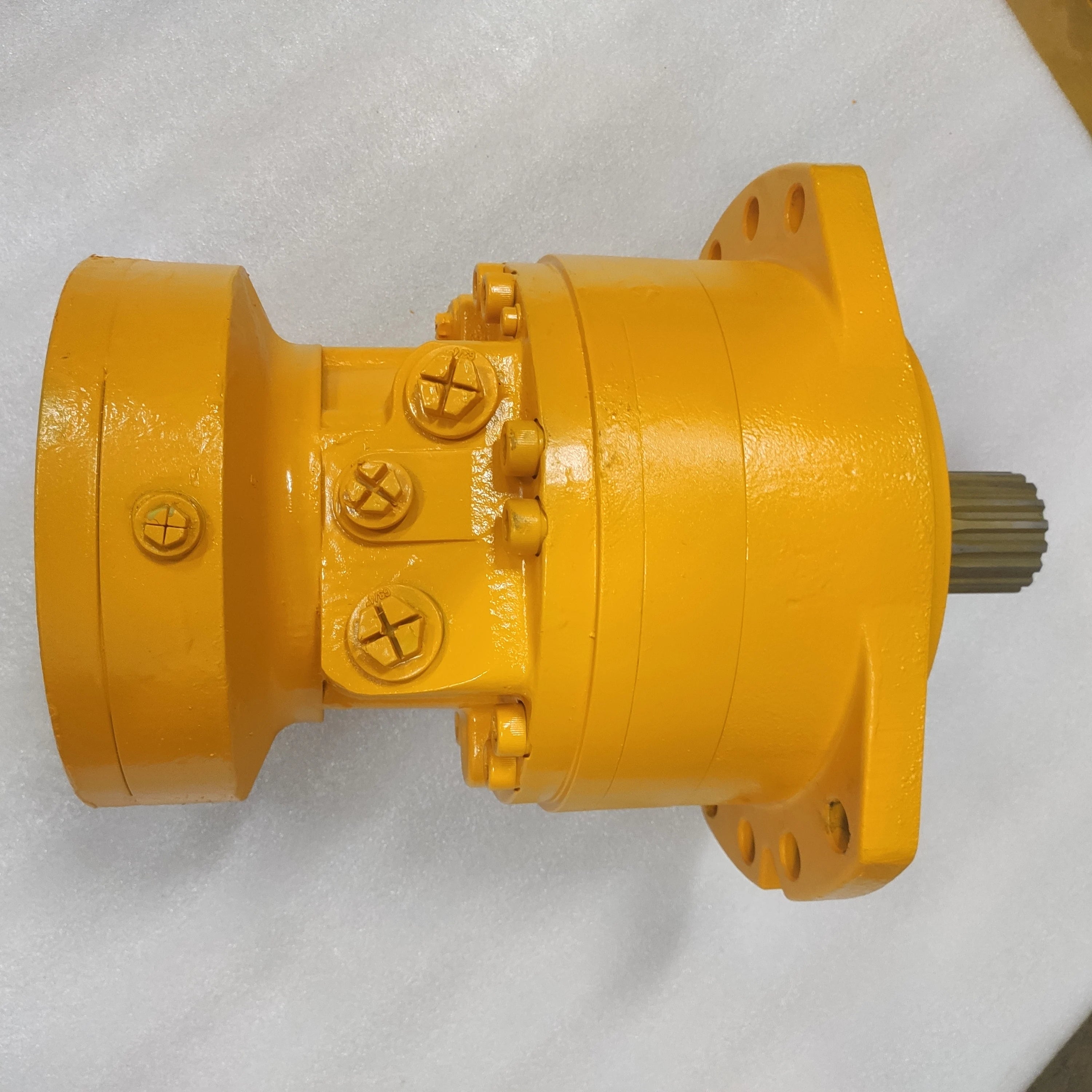

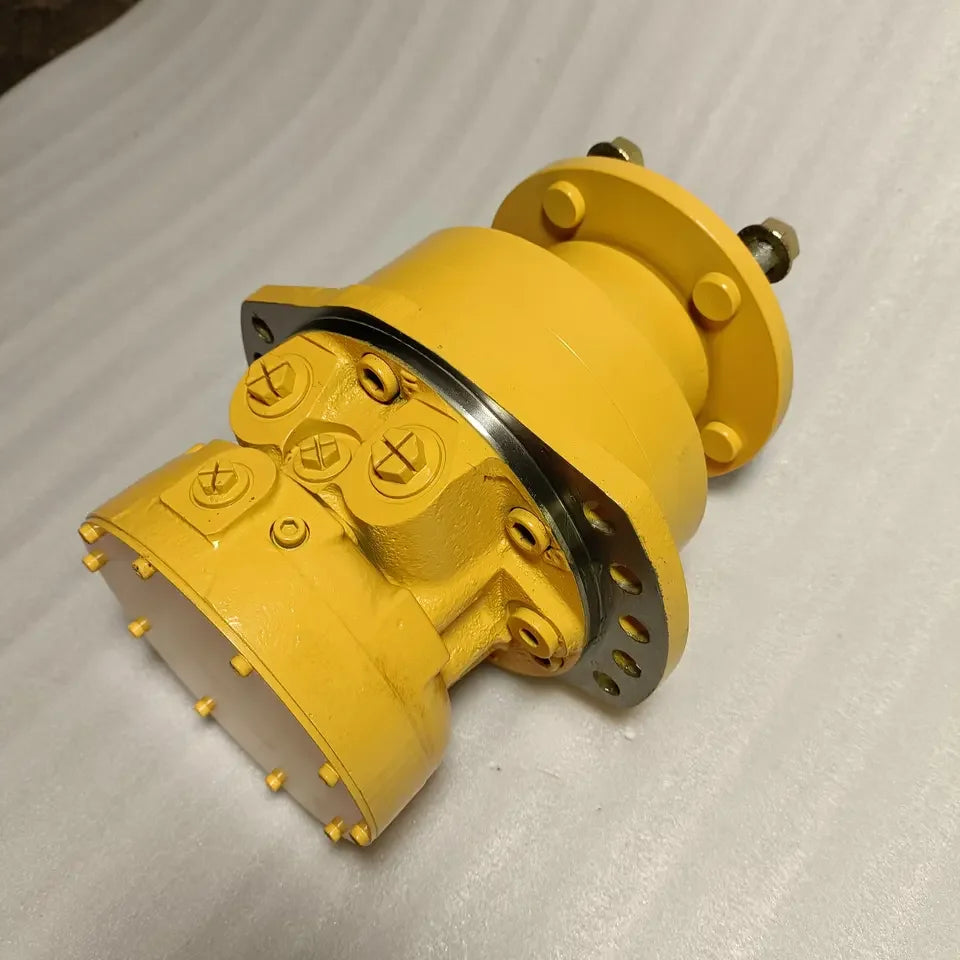

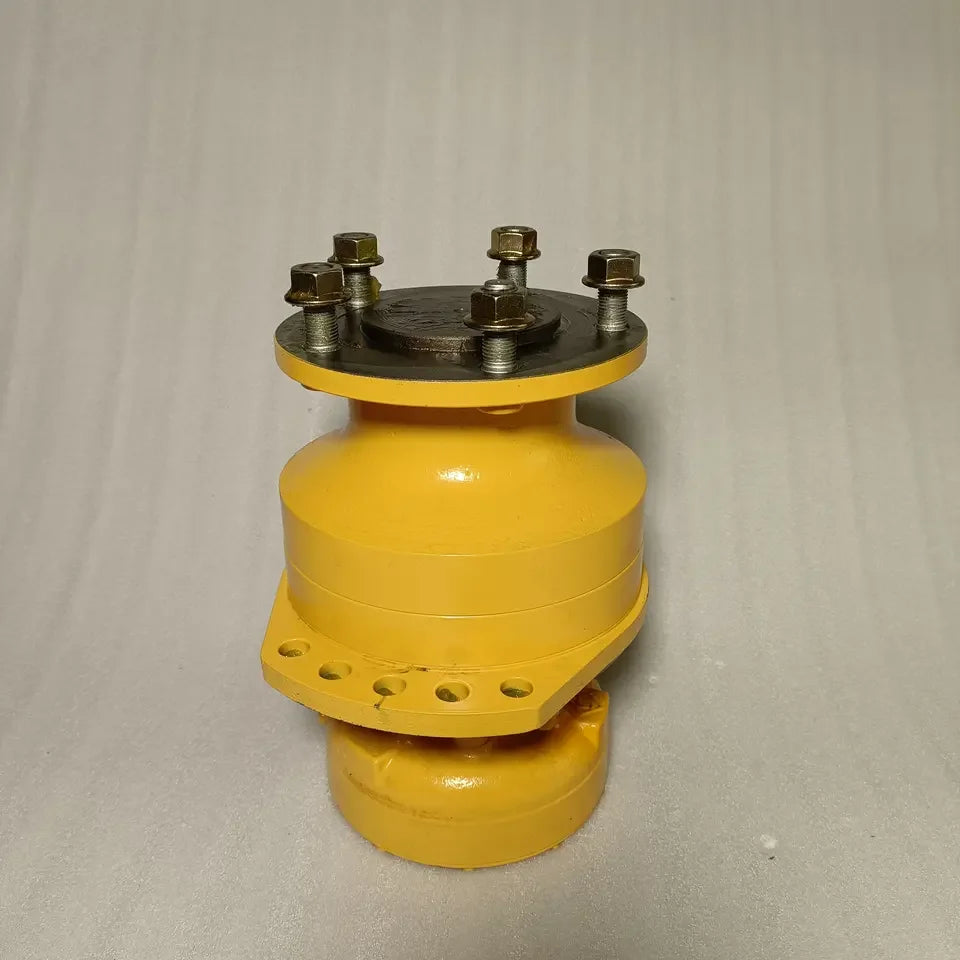

Hydraulic Motor MS05-9-G24-F04-1710-257EJM for Poclain MS Series Machinery

Hydraulic Motor MS05-9-G24-F04-1710-257EJM for Poclain MS Series Machinery

Regular price $4,379.00
Sale price $4,379.00 Regular price $2,196.00
Hydraulic Final Drive Travel Motor RA251-61290 RA25161290 RA251-61292 RA25161292 for Kubota Mini Excavator U15 U15-3

Hydraulic Final Drive Travel Motor RA251-61290 RA25161290 RA251-61292 RA25161292 for Kubota Mini Excavator U15 U15-3

Regular price $4,525.00
Sale price $4,525.00 Regular price $838.00
Travel Motor VOE14606699 14606699 for Volvo EC300D EC340D EC350DL EC380D EC380E EC300E Excavators

Travel Motor VOE14606699 14606699 for Volvo EC300D EC340D EC350DL EC380D EC380E EC300E Excavators

Regular price $3,500.00
Sale price $3,500.00 Regular price
Swing Motor VOE14639135 14639135 for Volvo EC350DL Excavator

Swing Motor VOE14639135 14639135 for Volvo EC350DL Excavator

Regular price $4,690.00
Sale price $4,690.00 Regular price
Hydraulic Drive Motor 74318-DDA for Eaton – Travel Motor

Caterpillar

Hydraulic Drive Motor 74318-DDA for Eaton – Travel Motor

Regular price $1,600.00
Sale price $1,600.00 Regular price $800.00
Travel Motor 706-8J-01012 for Komatsu PC400-7 Excavator

Travel Motor 706-8J-01012 for Komatsu PC400-7 Excavator

Regular price $13,650.00
Sale price $13,650.00 Regular price $942.76
Travel Motor / Final Drive 19031-25800 for Takeuchi TB180FR

Travel Motor / Final Drive 19031-25800 (1903125800) for Takeuchi TB180FR Excavator

Regular price $2,800.00
Sale price $2,800.00 Regular price
Swing Motor 708-7S-00022 for Komatsu PC30-7 Excavator

Swing Motor 708-7S-00022 7087S00022 for Komatsu PC30-7 Excavator

Regular price $3,800.00
Sale price $3,800.00 Regular price
Travel Motor MAG-33V-500E for Final Drive

Kayaba B0240-33030 MAG-33V-500E-1 Travel Motor KYB MAG-33V-500E Final Drive

Regular price $2,900.00
Sale price $2,900.00 Regular price
Hydraulic Swing Motor for Hitachi ZX200-3 Excavator

Hydraulic Swing Motor For Hitachi ZX200-3 Excavator

Regular price $4,200.00
Sale price $4,200.00 Regular price

Collection: Hydraulic Motors

Types of Excavator Hydraulic Motors We Supply

Excavators use two primary hydraulic motor types, each engineered for a specific and distinct function within the machine's operating system. Understanding which motor type you need ensures you source the correct assembly and avoid costly fitment errors:

Travel Motors

The travel motor, also called a final drive motor, is the hydraulic motor mounted inside each track drive assembly at the rear of the undercarriage. It receives high-pressure flow from the main hydraulic pump via the travel control valve and converts that flow into the rotational force that drives the sprocket, which in turn moves the track chain and propels the machine across the ground. Travel motors on modern excavators are typically high-torque, two-speed axial piston motors incorporating an integrated planetary reduction gearbox, the combination of hydraulic motor and gearbox together forming what is commonly referred to as the final drive assembly.

Travel motor failure manifests as one-sided track drive loss, reduced travel speed, inability to climb gradients, or complete propulsion failure on one or both tracks. Because excavators operate two independent travel motors, one per track, a fault in a single motor causes the machine to pull consistently toward the affected side, making straight-line travel difficult and dangerous on site. Imara Engineering supplies complete travel motor assemblies and internal motor components for all major excavator brands and models.

Swing Motors

The swing motor, also referred to as a slew motor, is the hydraulic motor that drives the rotation of the excavator's upper structure, or house, around the undercarriage through the slew ring gear. It is mounted on the upper structure directly above the slew ring and drives a pinion gear that meshes with the ring gear to produce the continuous 360-degree rotational capability that defines excavator operation. Like travel motors, swing motors on modern machines are typically integrated units combining a hydraulic motor with a planetary reduction gearbox and a hydraulic swing brake mechanism.

Swing motor failure presents as slow or jerky upper structure rotation, inability to hold the machine in position on a gradient, abnormal noise during slewing, or complete loss of swing function. Given that the swing circuit operates under frequent acceleration and deceleration cycles throughout the working day, swing motors are among the highest-wear hydraulic components on any excavator. Imara Engineering supplies complete swing motor assemblies for all major excavator brands, covering both motor and gearbox components for full assembly replacement or internal rebuild.

How Hydraulic Motors Work on an Excavator

Hydraulic motors operate on the reverse principle of a hydraulic pump, where a pump uses mechanical rotation to generate fluid flow, a motor uses pressurised fluid flow to generate mechanical rotation. On an excavator, the main hydraulic pump generates high-pressure flow that is directed by the main control valve to the travel or swing motor circuits based on operator input. As pressurised fluid enters the motor, it acts against the internal pistons or gear faces, creating a pressure differential that produces rotational torque on the motor output shaft.

Most excavator travel and swing motors use axial piston designs similar to the main pump with rotating cylinder barrels, reciprocating pistons, and valve plate porting, allowing them to deliver high torque output at variable speed in both forward and reverse directions. The integrated planetary gearbox then multiplies this motor torque through a series of gear reduction stages before it reaches the output sprocket or slew pinion, providing the enormous torque needed to move a fully loaded machine across rough terrain or rotate a heavy upper structure and attachment combination at controllable working speed.

Common Symptoms of Hydraulic Motor Failure

Hydraulic motor degradation follows a recognisable pattern across both travel and swing applications. Monitor your machine for these warning signs:

  1. One-sided travel pull — The machine consistently drifts toward one side during straight travel, indicating reduced output from one travel motor relative to the other.
  2. Loss of travel speed or gradient climbing ability — A worn travel motor cannot maintain sufficient torque output to drive the machine effectively under load.
  3. Slow or jerky swing rotation — Reduced swing motor output produces sluggish upper structure response and inconsistent rotation speed through the swing arc.
  4. Abnormal noise during travel or swing operation — Grinding, knocking, or whining from the motor or gearbox assembly indicates internal component wear or bearing failure.
  5. Oil leakage from motor seals — External leakage at the motor shaft seal or housing face indicates seal failure and the onset of internal pressure loss.
  6. Machine creeping or drifting when stationary — A worn or damaged motor brake valve allows the motor to creep under load pressure when the operator is not commanding movement.

Excavator Brands We Cover

Imara Engineering supplies hydraulic travel and swing motors compatible with all major excavator brands and model series:

  • Komatsu — PC200, PC210, PC300, PC360, PC400, PC450 and full PC series
  • Caterpillar (CAT) — 320, 320D, 323, 325, 330, 336, and full E-series
  • Hitachi — ZX200, ZX210, ZX300, ZX330, ZX450, ZX500 and full ZX/EX series
  • Volvo — EC210, EC240, EC290, EC380, EC480 and full EC series
  • Doosan — DX225, DX300, DX380, DX480 and full DX series
  • Kobelco — SK200, SK300, SK350, SK480 and full SK series
  • Hyundai — R210, R290, R380, R480 and full R series
  • Bobcat — E35, E50, E85 and compact excavator range
  • Case — CX130, CX210, CX300, CX350 and full CX series

Cannot find your model listed? Contact our parts team with your machine serial number and OEM part number for an immediate cross-reference and confirmation.

Complete Motor Assemblies vs Internal Repair Components

When a hydraulic motor fails, you have two primary supply options depending on the nature and extent of the failure:

  • Complete Motor Assembly — The entire motor unit, including internal hydraulic components, integrated gearbox, and brake valve, is replaced as one assembly. This is the fastest return-to-work solution and is recommended when internal damage is extensive, when the gearbox shows wear, or when the total cost of internal parts approaches the price of a complete unit.
  • Internal Motor Components and Seal Kits — Where the motor housing and major structural components are serviceable, internal wear parts, including pistons, cylinder barrel, valve plate, shaft seal, and o-ring kits, can be replaced individually. Imara Engineering supplies dedicated motor seal kits for travel and swing motor rebuilds across all major brands.

Our parts specialists will advise which supply option is most appropriate and cost-effective for your specific failure situation when you contact our team.

Related Hydraulic Parts You May Need

Hydraulic motor replacement or rebuild frequently connects to wider hydraulic system servicing. Consider sourcing these components alongside your motor:

  • Hydraulic Pumps — The pump is the upstream pressure source feeding your travel and swing motors — inspect simultaneously when diagnosing motor circuit faults
  • Control Valves — The main control valve directs flow to the motor circuits — inspect for spool wear when motor performance issues are present
  • Motor Seal Kits — Complete seal kits for travel and swing motor rebuilds
  • Transmission Seal Kits — For final drive gearbox seal replacement alongside travel motor servicing
  • Hydraulic Hoses & Pipes — Inspect motor feed and drain hoses when replacing any motor assembly
