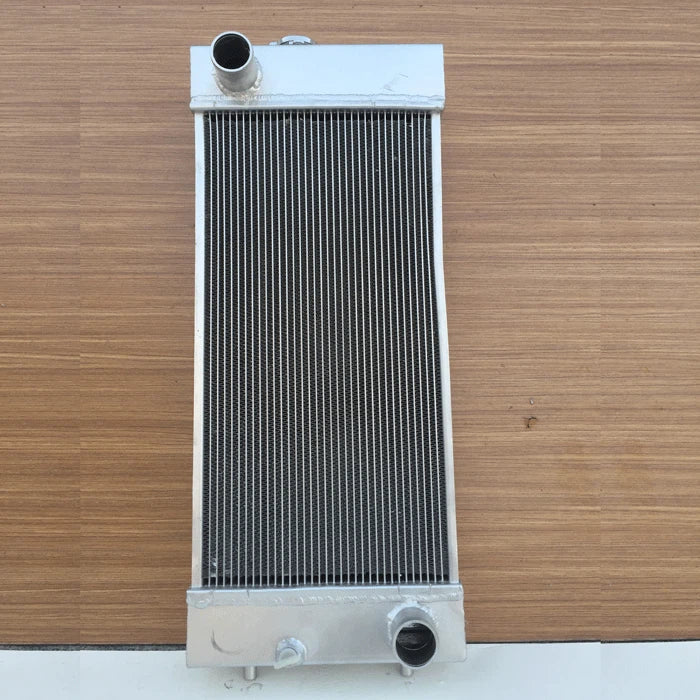

Excavator Radiator Replacement Guide

It's Day Three of a Tight Schedule, and the Temp Gauge Just Hit Red

You don't get a polite warning when an excavator's cooling system fails; you get a temperature needle climbing past the red line while the clock on your dig program keeps running. Ignore it for one more pass, and you're no longer looking at a radiator bill. You're looking at a blown head gasket, a seized engine, and a machine off the job for weeks instead of days.

Excavator radiator replacement is one of the most common cooling system repairs in heavy equipment fleets and one of the most frequently mismanaged. Operators wait too long to act on early warning signs. Procurement teams order based on price alone without confirming specifications. The result is either an avoidable engine repair or a replacement part that never delivers the cooling performance the machine actually needs.

This guide covers what to watch for, what genuinely drives excavator radiator price and replacement cost, and how to choose the right radiator OEM or certified aftermarket so the decision is correct the first time.

Quick answer: If your excavator is overheating despite full coolant, has visible core damage, or has clocked 8,000+ hours without a radiator service, you're almost certainly looking at replacement, not repair. Cost depends mainly on machine size, OEM vs. aftermarket spec, and access complexity — not on a single market price. Match the spec sheet, not just the mounting holes, and you'll get equivalent performance for considerably less than OEM pricing.

Why Radiator Condition Affects More Than the Engine

The radiator is the single point in the cooling system where the engine's entire heat load gets rejected to the atmosphere. Every other part of the coolant circuit, hoses, water pump, thermostat, exists only to move heat efficiently to and from this one component.

A radiator running below its design capacity doesn't cause a small, proportional rise in temperature. Heat accumulates under sustained load, which is why a degraded radiator can seem completely normal at idle and only reveal the fault once the machine is digging, lifting, or travelling under load for an extended stretch.

That's exactly why radiator faults get misdiagnosed so often in the field. The fault hides during the inspection and shows up mid-shift.

Signs Your Excavator Radiator Needs Replacing

Not every cooling complaint requires replacement. These signs specifically point to a radiator that has reached the end of its service life.

• Persistent overheating despite regular coolant top-ups. If coolant levels are being maintained but the machine still runs hot under load, the radiator has most likely lost internal heat-rejection capacity; it isn't simply losing fluid externally.
• Visible core damage. Bent or crushed fins across a notable portion of the core face, active weeping at tube-to-fin joints, or stress cracking at tank-to-core seams all point to structural degradation that cleaning can't fix.
• Internal blockage that survives a core clean. External cleaning resolves surface contamination, but it does nothing for internal scale build-up or sludge from degraded coolant. If overheating continues after a thorough clean, the blockage is internal.
• Machine age and cumulative hours. Most excavator radiators have a realistic service life of 8,000 to 12,000 operating hours under normal conditions, shorter in high-dust environments common across mining and civil earthworks sites in Australia and similar climates worldwide.

For a deeper breakdown of how each cooling system component contributes to overheating, see our companion guide on diagnosing excavator overheating.

Repair or Replace: How to Decide

Repair is appropriate when:

• Damage is isolated to a single section of the core
• Tanks and end fittings are undamaged
• The machine has no history of chronic overheating or internal blockage

Replacement is the right call when:

• Core damage is widespread rather than localised
• The radiator has already been repaired once, and the fault has returned
• Internal corrosion or blockage is confirmed
• The machine has accumulated significant hours,s and the radiator has never been replaced

In practice, the labour required to access and remove the radiator is largely identical whether you repair or replace it. The cost gap between the two options is often smaller than procurement teams assume, particularly once the downtime risk of a repeat failure is factored into the decision.

What Actually Drives Excavator Radiator Cost

There's no single market price for this repair. Four variables determine the actual cost on any given machine:

1. Machine size and engine class. A radiator for a compact excavator is a fraction of the cost of one built for a large machine running a high-displacement turbocharged engine. Core size, tube count, and material thickness all scale directly with cooling demand.
2. OEM versus aftermarket specification. OEM radiators carry a brand premium on top of manufacturing cost. Certified aftermarket radiators built to the same core specification typically deliver equivalent thermal performance at a noticeably lower price.
3. Labour and access complexity. On some machine platforms, the radiator sits behind the full cooling fan stack and needs substantial disassembly. On others, access is straightforward; this variance alone can add several hours of labour between otherwise comparable jobs.
4. Freight and lead time. For fleets on remote or regional sites, freight cost and delivery lead time can add a real margin to an urgent breakdown order compared with a planned stock replacement. Holding critical spares ahead of need is the most effective way to remove this variable from the equation entirely.

OEM vs Aftermarket: What the Spec Sheet Should Tell You

The OEM versus aftermarket decision should be made on published specification data, not price alone.

Before approving any aftermarket excavator radiator, confirm the following against the original unit:

• Core dimensions: overall size, tube count, and fin density
• Material grade: aluminium core construction with correct tube wall thickness for the pressure rating
• Pressure rating: must match the system's designed operating pressure
• Mounting points and port positions: must align precisely with hose routing and fan clearance
• Warranty period: six to twelve months is standard for a quality aftermarket radiator

A supplier who can hand over this data is confirming the radiator was engineered to match the original, not just shaped to fit the same mounting holes. For more on how this principle applies across the full cooling system, see our guide to OEM vs aftermarket cooling parts.

Common Mistakes to Avoid

• Ordering on dimensions alone. A radiator that fits the mounting points but uses a lower fin density or thinner core won't reject heat at the same rate under full load, even though it "fits."
• Skipping the load test after installation. A new radiator can perform fine at idle and still underperform once the engine reaches full working temperature under sustained load. Always run the machine through a complete work cycle before returning it to unsupervised operation.
• Reusing old hoses and gaskets. With the cooling system already open for the swap, ageing hoses and seals should be inspected and replaced in the same job, not left to fail independently and force a second shutdown.
• Mixing coolant types. Refilling with a different coolant formulation from the original specification accelerates internal corrosion and can shorten the new radiator's service life considerably.
• Treating price as the only variable. The cheapest radiator on the market is rarely the cheapest radiator over the life of the machine, once downtime, premature failure, and consequential engine damage are factored in.

Buyer's Checklist Before You Order

• Confirm the machine serial number, not just the model designation, and provide it to your supplier.
• Request the core specification sheet for any aftermarket option under consideration.
• Confirm the pressure rating matches your machine's designed operating pressure.
• Check warranty terms for a minimum of six to twelve months for quality aftermarket parts.
• Factor in freight and lead time if your site is remote or regional
• Plan hose and coolant replacement into the same service window
• Schedule a load test as part of installation, not as an afterthought

Where Imara Engineering Supplies Fits In

Specification accuracy is the difference between a radiator replacement that solves the problem and one that just delays it. Imara Engineering Supplies stocks OEM-compliant and certified aftermarket excavator radiators across major machine brands, with full core specification data provided for every aftermarket part we supply.

For fleets running across multiple sites, we also support planned spares holding, confirming the correct radiator specification against your fleet in advance, so an urgent breakdown doesn't turn into an extended downtime event waiting on freight.

For the complete range of supporting cooling components, engine oil coolers, hydraulic oil coolers, and cooling fans, visit our radiators and cooling system parts collection.

Conclusion

Excavator radiator replacement is a predictable, manageable repair when the warning signs are caught early,y and the buying decision is made on specification rather than price. Persistent overheating, visible core damage, confirmed internal blockage, and machine age are the four signals that point clearly toward replacement, and acting on them before the engine itself is compromised is what keeps this a routine maintenance cost instead of an emergency one.

If your excavator is showing any of the signs covered in this guide, the next step is confirming the correct specification, not guessing at it.

Contact Imara Engineering Supplies today to confirm the right radiator for your machine, request a quote, or speak with our technical team about your fleet's cooling system requirements.
