Bolt 01011-81010 for Komatsu HD785-5 Rigid Dump Truck
Vendor: Imara Engineering Supplies
Available in stock
Additional Information
Part Name: Bolt
Part Number(s): 01011-81010
Brand Compatibility: Komatsu
Machine Model: HD785-5
Machine Type: Rigid Dump Truck
Application: Air Intake — Manifold Fastening
Condition: Brand New / OEM Standard Replacement — the same condition standard stated on every Imara Engineering Supplies product.
Shipping: Fast worldwide shipping available with secure packaging and reliable international logistics.

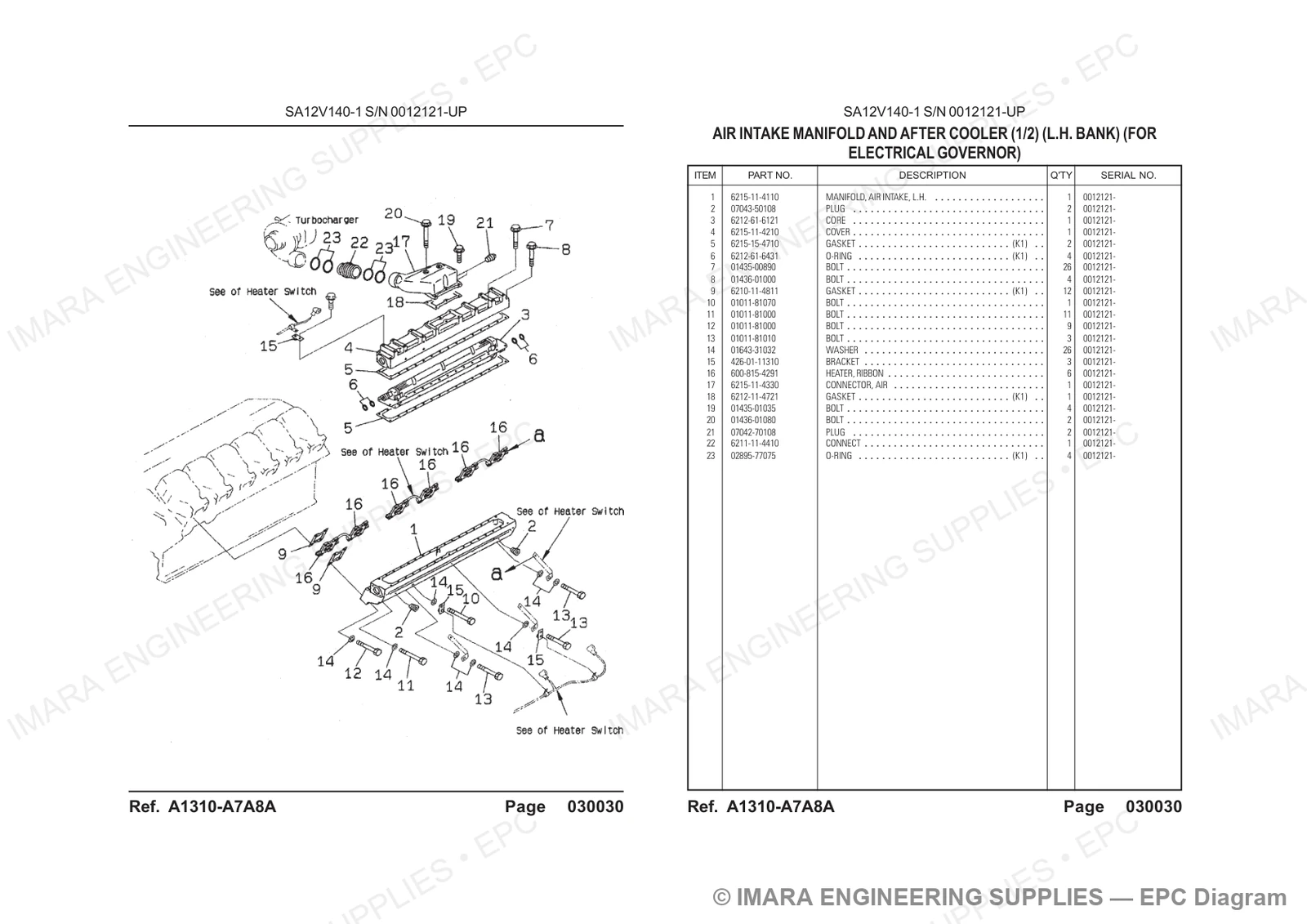

The 01011-81010 bolt is specified for the Komatsu HD785-5 rigid dump truck, fastening components of the L.H. air intake manifold assembly (figure A1310-A7A8A, catalogue page 030030) on the SA12V140-1 diesel engine.
The Komatsu HD785-5 is a large rigid dump (haul) truck built for mining and quarry operations, powered by the SA12V140-1 diesel engine — a 12-cylinder (V12), 140 x 165 mm bore/stroke, 30.48-litre unit producing approximately 753 kW (~1,007 hp), per public HD785-5 specifications. The truck itself has a net load capacity of around 91 tonnes. As a fastener, it is typically replaced whenever it shows thread damage, corrosion, or fatigue, or as a precaution during assembly service.
Cross-Reference Part Numbers: 01011-81010 — Komatsu's parts documentation carries no alternate prefix or aftermarket cross-reference for this part; this is the single canonical OEM designation.
Engine Identification: Komatsu SA12V140-1 (12-cylinder/V12 diesel)
Compatible Models: Komatsu HD785-5 rigid dump truck, documented machine serial range 0012121- and up (per Komatsu's own parts catalogue).
Assembly Context: Documented on OEM figure A1310-A7A8A (catalogue page 030030), the L.H.-bank air intake manifold and aftercooler assembly for the SA12V140-1's V12 configuration — 23 components in total on this figure. See Related Parts below for the full set.
Typical Applications: Mining, Quarrying, Heavy Earthmoving, Construction Site Haulage
Fitment note: Confirm your machine's serial number and existing engine configuration before ordering — HD785-5 specifications can vary across production series.
Specifications
Compatible Models: Komatsu HD785-5 (serial 0012121- and up)
Sourced from OEM figure A1310-A7A8A, catalogue page 030030.
