Gasket 6210-11-8820 for Komatsu HD785-5 Rigid Dump Truck
Vendor: Imara Engineering Supplies
Available in stock
Additional Information
Part Name: Gasket
Part Number(s): 6210-11-8820
Brand Compatibility: Komatsu
Machine Model: HD785-5
Machine Type: Rigid Dump Truck
Application: Cylinder Head Sealing
Condition: Brand New / OEM Standard Replacement — the same condition standard stated on every Imara Engineering Supplies product.
Shipping: Fast worldwide shipping available with secure packaging and reliable international logistics.

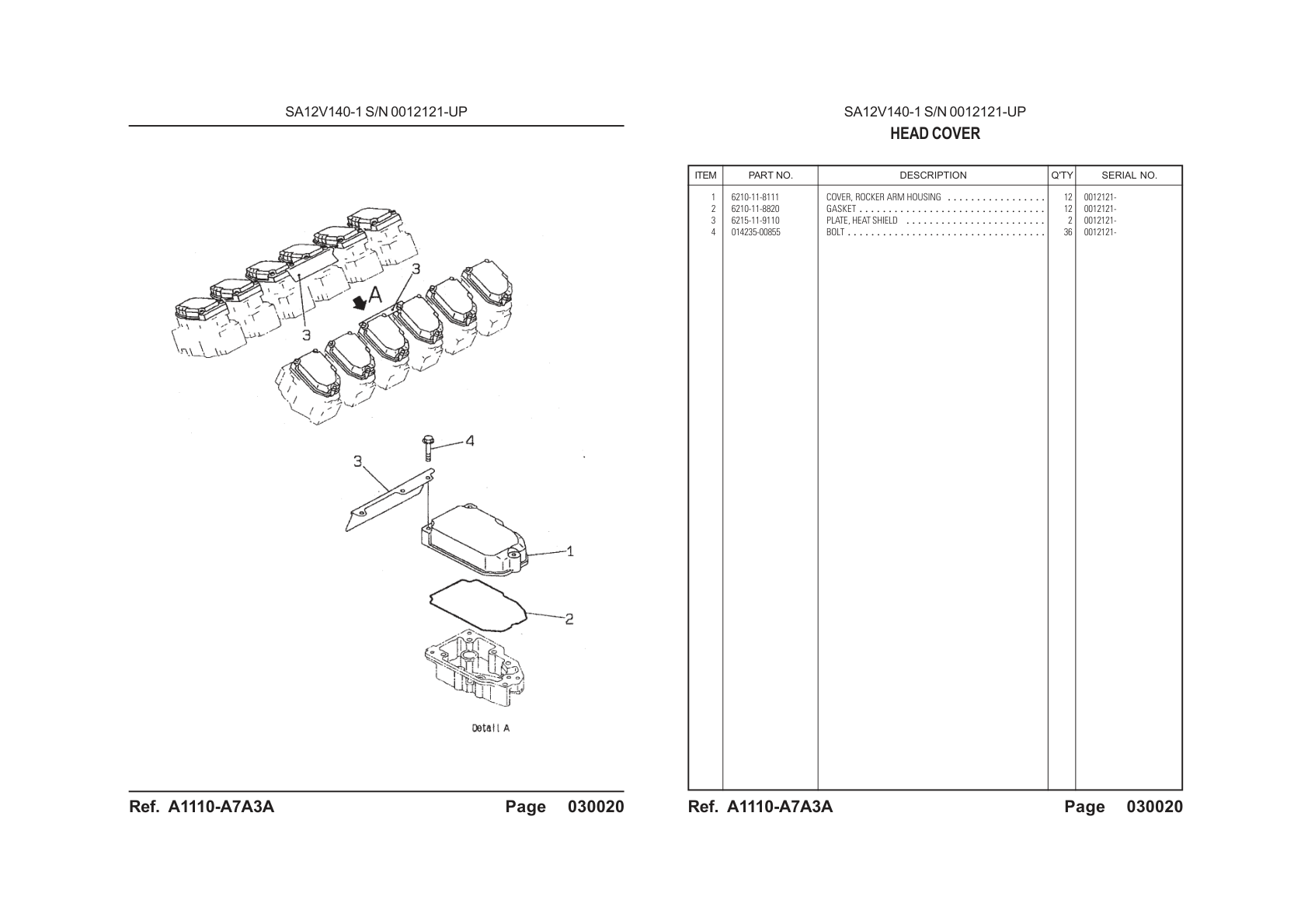

The 6210-11-8820 gasket is specified for the Komatsu HD785-5 rigid dump truck, sealing the joint between the rocker arm housing cover (part 6210-11-8111) and the cylinder head on the SA12V140-1 diesel engine. It is documented under the same figure, A1110-A7A3A (catalogue page 030020), directly alongside the cover it seals.
One gasket is fitted per rocker arm housing cover, so the quantity of 12 corresponds directly to the SA12V140-1's 12 cylinders — the same count as the cover itself. The Komatsu HD785-5 is a large rigid dump (haul) truck built for mining and quarry operations, powered by the SA12V140-1 diesel engine — a 12-cylinder (V12), 140 x 165 mm bore/stroke, 30.48-litre unit producing approximately 753 kW (~1,007 hp), per public HD785-5 specifications. The truck itself has a net load capacity of around 91 tonnes. Gaskets are a routine wear item, generally replaced as a set whenever the rocker arm housing cover is removed, since re-using a compressed gasket risks an oil leak at the cover joint.
Cross-Reference Part Numbers: 6210-11-8820 — Komatsu's parts documentation carries no alternate prefix or aftermarket cross-reference for this part; this is the single canonical OEM designation.
Engine Identification: Komatsu SA12V140-1 (12-cylinder/V12 diesel)
Compatible Models: Komatsu HD785-5 rigid dump truck, documented machine serial range 0012121- and up (per Komatsu's own parts catalogue).
Assembly Context: Documented on OEM figure A1110-A7A3A (catalogue page 030020) alongside the other 3 components in this same rocker arm housing assembly — see Related Parts below for the full set.
Typical Applications: Mining, Quarrying, Heavy Earthmoving, Construction Site Haulage
Fitment note: Confirm your machine's serial number and existing engine configuration before ordering — HD785-5 specifications can vary across production series.
Specifications
Compatible Models: Komatsu HD785-5 (serial 0012121- and up)
Sourced from OEM figure A1110-A7A3A, catalogue page 030020.
