Track Rollers - The Undercarriage Component That Carries Everything

What Track Rollers Do And Why Their Condition Defines Your Undercarriage

Track rollers also called bottom rollers or lower rollers are the steel rollers mounted in series along the bottom of the track frame on each side of the machine. Their function is to support the machine's weight on the lower run of the track chain or rubber track, distributing that load evenly across the track links or track pads as the machine travels and works.

Each roller is a sealed, oil-lubricated unit. Inside the hardened steel shell, a shaft runs in bronze bushings lubricated by an internal oil reservoir sealed by floating metal face seals at each end. The face seals are the critical component when they fail through abrasive contamination, incorrect track tension forcing the seals beyond their design load, or accumulated operating hours, the oil escapes. The shaft and bushings transition from lubricated contact to dry metal-on-metal friction. The roller progresses toward seizure.

A seized track roller does not just stop rotating. It becomes a stationary contact point beneath the track concentrating the full machine weight on a single point instead of distributing it across a rotating surface. The rubber track or track chain above it begins wearing at an accelerated rate. The track frame absorbs abnormal point loads. The idler and sprocket on that side experience irregular tension. What began as a failed face seal became a track replacement, a track frame inspection, and in severe cases, a sprocket and idler replacement all because the roller was not caught in time.

Warning Signs, When Your Track Rollers Need Replacing

These are the signals across your excavator or bulldozer undercarriage that demand action not a note on the service sheet for the next scheduled stop:

• Oil weeping or pooling beneath the track frame — face seal failure. The internal oil charge is escaping and lubrication is deteriorating with every operating hour from this point.
• Flat spots or squared sections on roller shells — the roller has seized and is being dragged rather than rotating. The flat spot is machining itself against the track link surface with every pass.
• Abnormal track link or rubber track inner surface wear above specific roller positions — point loading from a seized roller. The track is telling you exactly which roller is the problem.
• Rhythmic vibration or juddering during travel on otherwise smooth ground — flat-spotted rollers creating a periodic impact as the deformed surface contacts the track with every revolution.
• Machine sitting unevenly on level ground or instability during digging — asymmetric roller wear allowing the track frame to drop on one side, affecting working geometry.
• Track riding off-centre across the roller flanges — worn flanges no longer guiding the track correctly, accelerating both flange wear and track link side wear simultaneously.

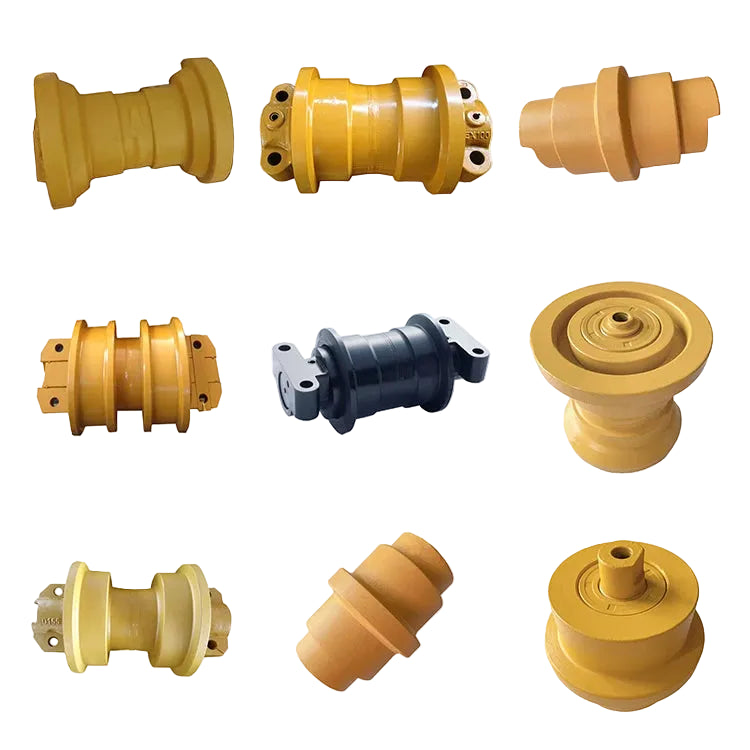

Track Roller Specifications, Single Flange, Double Flange, and Getting the Right Fit

Not all track rollers are the same configuration and fitting the wrong configuration to a roller position on the track frame produces abnormal track running geometry from the first operating hour.

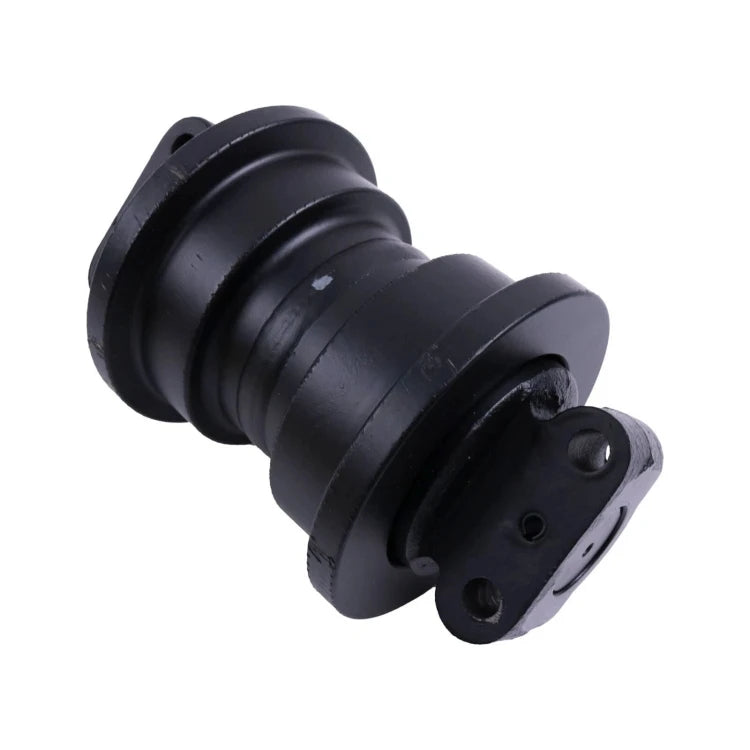

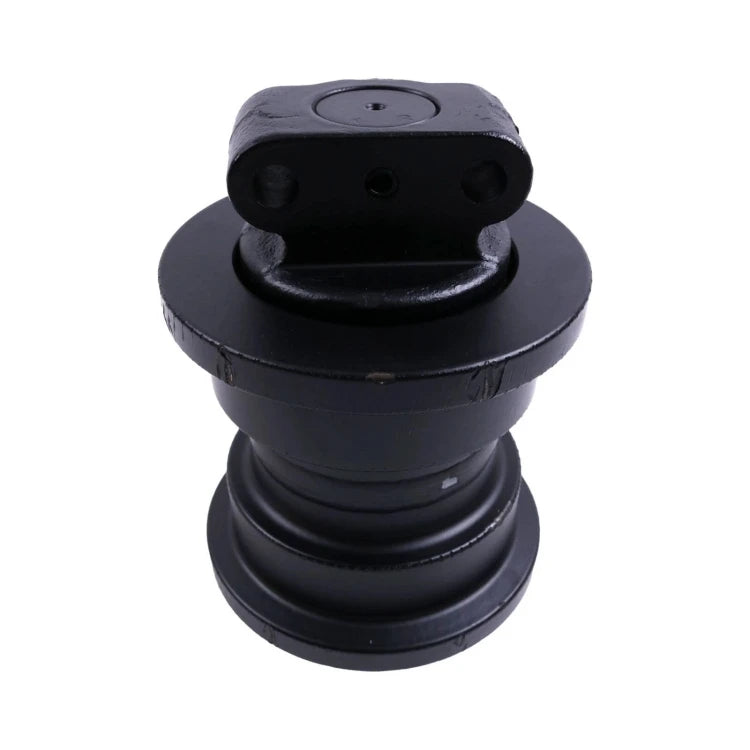

Track roller single flange — a roller with one raised guide flange on one side of the shell. Typically used in outer roller positions on the track frame where the flange guides the track link on the inboard side only.

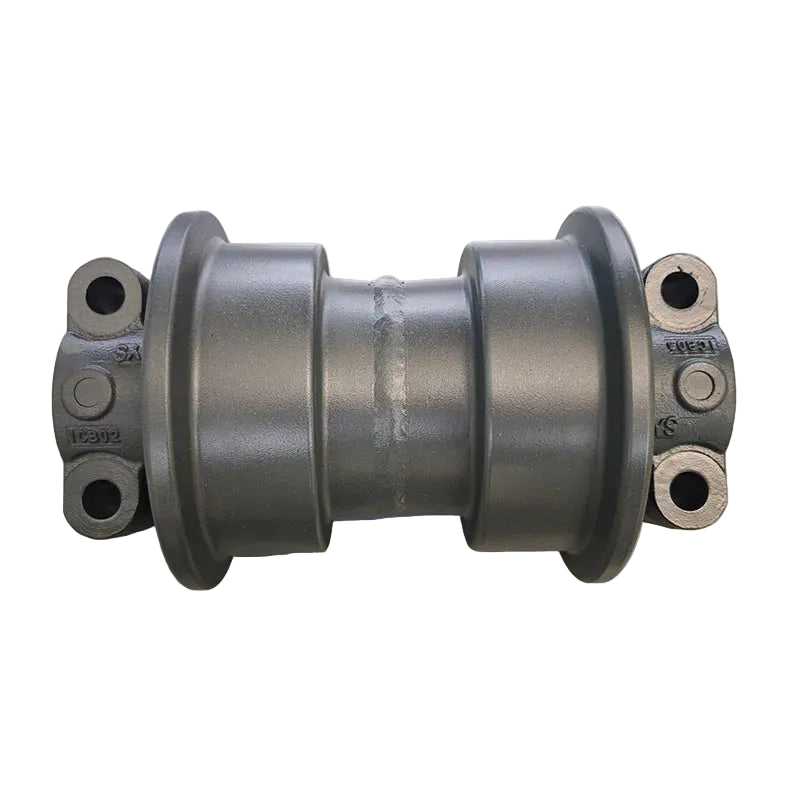

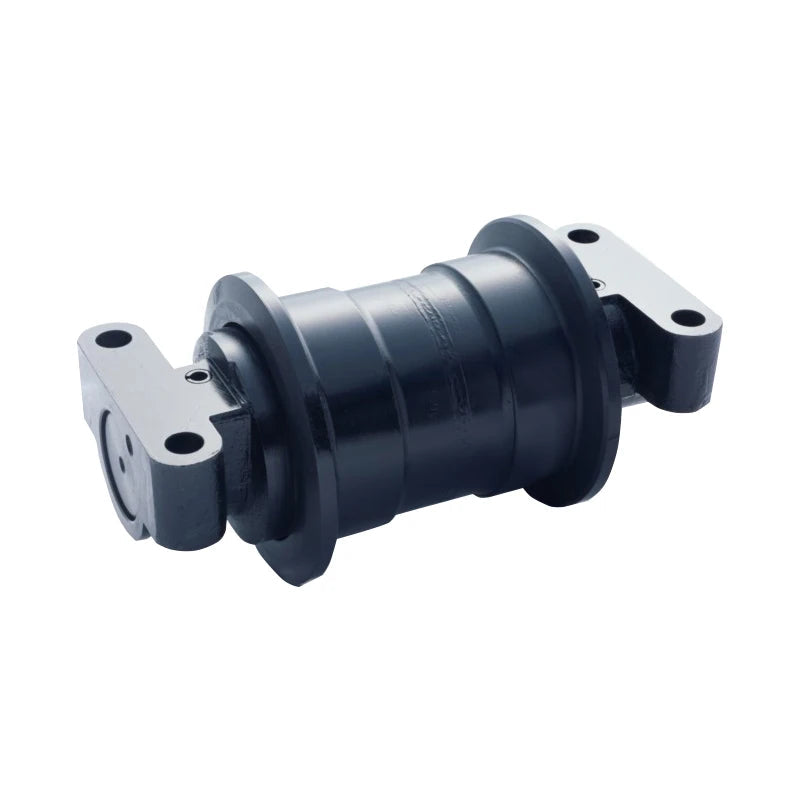

Track roller double flange — a roller with raised guide flanges on both sides of the shell. Used in inner roller positions where the track link must be guided on both sides simultaneously to prevent lateral movement. Double flange rollers carry a higher specification requirement for flange hardness and profile accuracy than single flange units.

Beyond flange configuration, four parameters define the correct track roller for your machine:

• Shell outer diameter — must match the track frame roller mounting geometry exactly
• Flange width and profile — must match the track link inner width for your specific machine
• Shaft diameter and mounting dimensions — must match the roller bracket on your track frame
• Face seal grade — must be matched to the machine's operating weight and working environment

At Imara Engineering, every track roller order is confirmed against all parameters using your machine serial number and roller position on the track frame front, mid, or rear. Provide your machine make, model, serial number, and roller position and we confirm the exact specification before your order is placed.

Track Rollers by Machine Type

Excavator Track Rollers

Excavator bottom rollers carry machine weight across varied terrain and under the dynamic loads of active digging cycles a profile that combines sustained static weight bearing with intermittent high-load spikes as the machine digs against resistance and the reaction force transfers through the undercarriage system. Our excavator track roller range covers mini excavators from 1-tonne class through to large production machines across Cat, Komatsu, Hitachi, Kubota, Yanmar, and Bobcat.

Bulldozer Track Rollers

Bulldozer bottom rollers operate under the most sustained and consistently high loads in the tracked machine category continuous blade pushing cycles place the undercarriage system under a load intensity that excavator rollers never encounter. Dozer track rollers are specified to a higher shell wall thickness, shaft hardness rating, and face seal grade than equivalent excavator rollers; they are a distinct product category, not interchangeable inventory. Our bulldozer track roller range covers Cat D series and Komatsu D series dozers across the most widely operated dozer weight classes. Shop Bulldozer Track Rollers.

Track Rollers by Brand

Caterpillar Track Rollers

Covering the Cat mini excavator range  301, 302, 303, 305, and 308 series  and the Cat track rollers range from D4 through to D9. Cat track rollers are manufactured to precise undercarriage geometry specifications. Our Cat-specification bottom rollers are cross-referenced against OEM part numbers for shell diameter, flange width, and track gauge across all listed models.

Komatsu Track Rollers

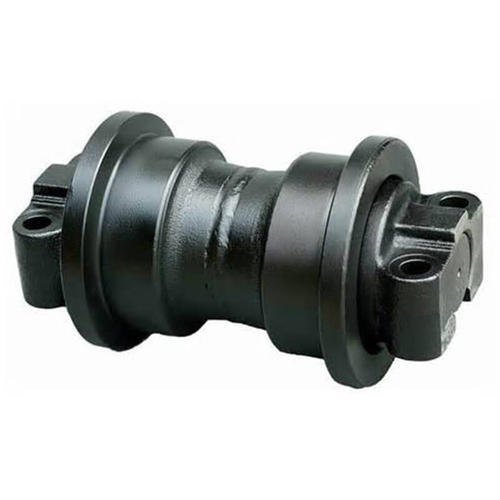

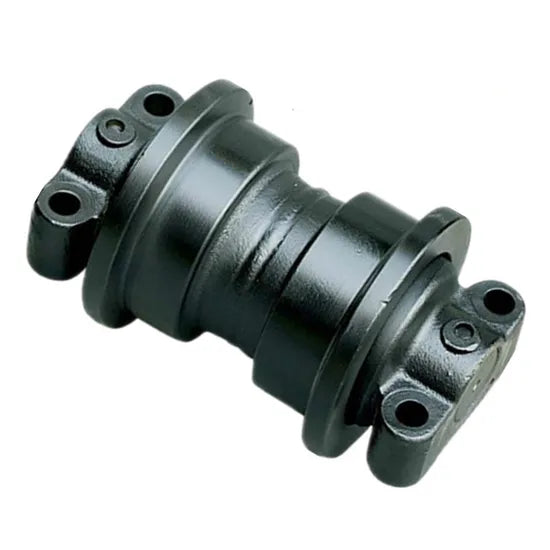

Compatible with the PC series mini and compact excavator range from PC15 through PC78 and the Komatsu track rollers range including D39, D51, D61, D65, and D85. The Komatsu PC200 track roller is among our most consistently demanded specifications stocked as a priority item given the volume of PC200 machines across global construction and hire fleets.

Hitachi Track Rollers

Stocked for the Hitachi ZX series mini and compact excavator range including ZX17, ZX26, ZX35, ZX50, ZX75, and larger ZX series models including the ZX200. Hitachi track rollers are confirmed against Hitachi OEM part numbers for shell diameter, flange profile, and shaft specification across the ZX range.

OEM Quality. Correct Specification. Without the OEM Price.

The engineering that determines whether a track roller delivers 5,000 operating hours or 500 is inside it in the face seal specification, the oil charge volume, the shaft hardness, and the shell wall thickness. These are the parameters that low-cost rollers consistently under-specify and the parameters that Imara Engineering confirms on every roller that enters our inventory.

Every track roller in our undercarriage parts range is held to four quality standards:

• Shell hardness to HRC 52-58 — hard enough to resist abrasive wear from continuous track link contact without being brittle under rock and debris impact loads
• Floating metal face seal grade matched to the operating environment — the most critical quality variable in any track roller. Confirmed for each machine family and application context — not a universal seal grade applied across all machines and conditions.
• Internal oil volume and lubricant grade confirmed for operating temperature range — correct viscosity at operating temperature ensures effective lubrication across the full service interval without oil starvation
• Shaft hardness and bushing clearance matched to machine weight class — confirmed against OEM specification for each weight class. An undersized shaft deflects under peak load and destroys the face seals from the inside out.

OEM track rollers carry a brand premium above equivalent quality aftermarket specification. At Imara Engineering, the shell specification, seal grade, oil specification, and fitment guarantee are the same standard. The premium is not.

Undercarriage Maintenance, The System Context That Makes Track Rollers Last

Track rollers do not wear in isolation. They wear as part of a connected undercarriage system where the condition of every surrounding component affects their wear rate. Three system factors most directly determine track roller service life:

• Track tension — over-tensioning loads bottom rollers above their rated capacity. Under-tensioning allows the track to sag between roller positions, creating impact loads as the slack track snaps tight under travel. Both conditions shorten roller service life. Check and adjust to manufacturer specification every 250 operating hours.
• Sprocket and idler condition — a worn sprocket or misaligned idler forces the track to run off-centre across the roller shells and flanges. The asymmetric loading accelerates roller flange wear on one side and reduces effective shell life. Inspect sprocket and idler alongside every track roller inspection.
• Operating surface — abrasive surfaces including sand, gravel, and rock aggregate accelerate roller shell wear while simultaneously driving contamination into face seal contact zones. Increase inspection frequency to every 150 hours in severe abrasive conditions.

Industries We Supply Track Rollers To

• Construction & Civil Engineering — excavator bottom rollers for machines on active construction programmes where deferred undercarriage maintenance turns a roller replacement into a track replacement
• Mining & Quarrying — bulldozer and large excavator track rollers for the most abrasive conditions in the tracked machine category. OEM-rated shell hardness is non-negotiable in quarry environments.
• Agriculture & Land Management — compact excavator and bulldozer track rollers for high-moisture conditions where face seal specification for wet and muddy environments is the critical quality parameter
• Landscaping & Garden Construction — mini excavator track rollers where roller condition directly affects rubber track wear and machine stability on finished surfaces
• Pipeline & Utility Trenching — excavator track rollers for stony easement corridors where rock impact damage to roller shells and flanges is a regular maintenance event
• Plant Hire & Rental Fleets — track rollers across mixed-brand hire fleets where consistent quality and reliable lead times define the supplier relationship
