What Track Shoes Do And Why Specification Matters Beyond the Shoe Itself

Track shoes bolt directly to the outer link plates of the track chain, one shoe per link, forming the continuous ground contact surface of the undercarriage system. Their primary function is traction; the grouser profile on the underside of each shoe engages the ground surface to generate the tractive effort that moves the machine and resists the forces generated during digging and pushing work.

But the track shoe's function extends beyond traction. The shoe width determines the ground contact area and therefore the ground pressure the machine exerts per unit area. Too narrow and the machine sinks into soft ground and loses traction. Too wide and the machine generates excessive torque loads on the track chain links during turning, accelerating chain wear. The correct shoe width for your machine and operating environment balances traction, ground pressure, and chain service life simultaneously.

The track shoe bolt pattern and bolt grade are equally critical. The shoe bolts clamp the shoe to the link plate under the dynamic loads of machine operation, the cyclic loading and unloading of each shoe as it enters and leaves ground contact with every track revolution. Under-grade bolts lose torque under this cyclic loading, producing loose shoes that vibrate against the link plates and elongate the bolt holes damaging the chain and the shoes simultaneously.

Track Shoe Types, Matching the Grouser to the Ground

The grouser profile of the track shoe determines how the shoe engages the ground surface and the wrong grouser for the terrain produces reduced traction, accelerated shoe wear, and in sensitive applications, unnecessary ground damage. We stock four primary grouser configurations across the track shoe range:

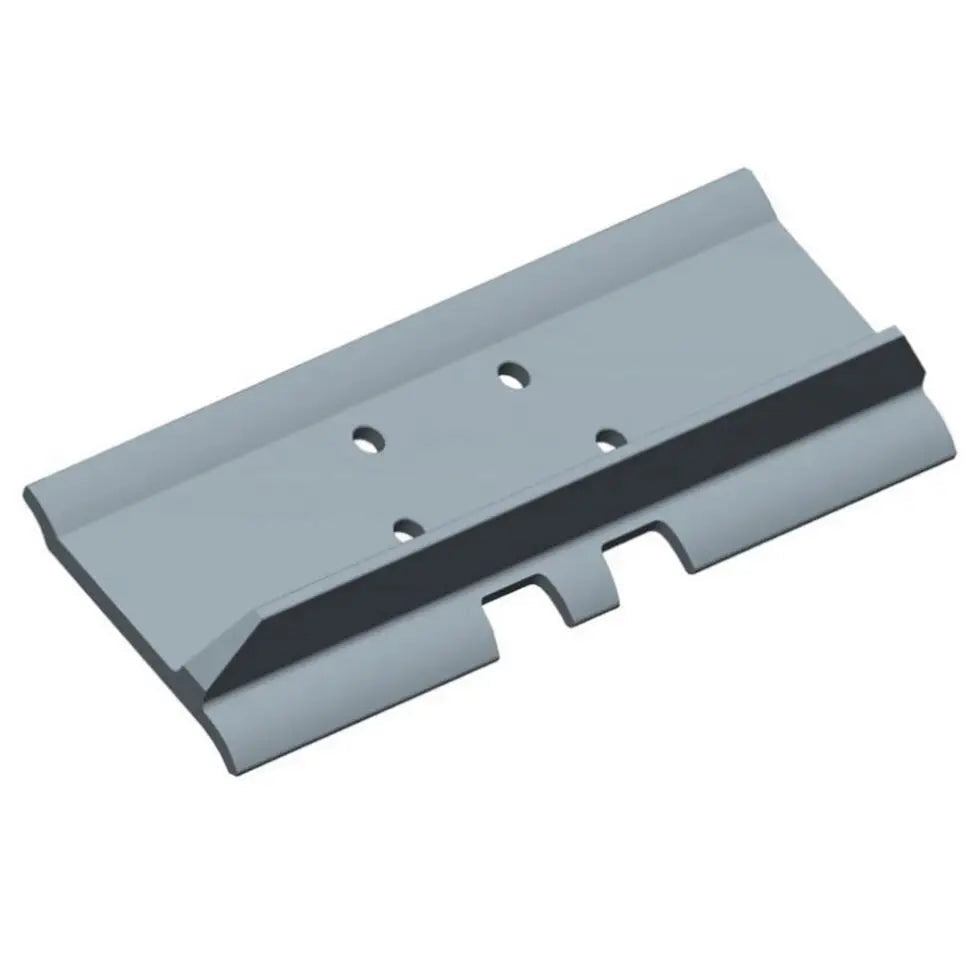

Single Grouser Track Shoes

The single grouser, also called a standard grouser or single bar shoe, carries one raised transverse bar across the full shoe width. This is the standard configuration for construction and civil engineering applications on firm, mixed, and compacted terrain. The single grouser penetrates the ground surface to generate traction without the multi-grouser pattern that would be required on softer ground. The most widely stocked track shoe configuration across our excavator and bulldozer range and the correct specification for most construction site applications.

Triple Grouser Track Shoes

The triple grouser shoe carries three smaller transverse bars across the shoe width. The triple bar configuration distributes the ground engagement load across three contact zones, generating strong traction on soft ground, clay, and wet conditions where a single grouser would sink excessively. Widely used on bulldozers in land clearing and agricultural applications and on excavators operating in soft-ground drainage and earthworks environments. The track shoe PC200 triple grouser specification is a commonly ordered configuration for Komatsu PC200 machines in agricultural drainage applications.

Flat Plate Track Shoes

The flat plate shoe carries no grouser; it presents a flat steel contact surface to the ground. Used on machines operating on finished concrete, asphalt, or sensitive paved surfaces where grouser penetration would cause surface damage. The flat plate shoe sacrifices traction for surface protection; it is the correct specification for machines working inside structures, on finished floors, or on surfaces where grouser marks are unacceptable. Available across mini excavator and compact excavator specifications.

Swamp and Wide Pad Track Shoes

Swamp shoes and wide pad shoes carry an extended width beyond the standard OEM shoe width for the machine model. Used on machines operating in waterlogged, swampy, or very soft ground conditions where standard shoe width produces excessive sinkage and loss of mobility. The extended width reduces ground pressure by distributing the machine weight across a larger contact area. Specification must be confirmed carefully; the wide pad shoe width must remain within the machine's safe operating envelope for chain and sprocket loads during turning.

Warning Signs When Your Track Shoes Need Replacing

Track shoe wear communicates itself through both visual inspection and through operational performance. These signals indicate replacement is required:

• Grouser height worn below effective traction threshold — the grousers have worn to a height where they can no longer penetrate the ground surface to generate adequate traction. The machine slips on terrain it previously handled without difficulty.
• Grouser tips rounded or mushroomed — the grouser tip has deformed under impact loading, losing the sharp edge that generates clean ground penetration. Rounded grousers reduce traction and increase ground surface disturbance simultaneously.
• Track shoe bolts requiring frequent re-torquing — the bolt holes in the link plates have elongated through repeated loose-shoe vibration. This is a chain damage indicator as well as a shoe replacement signal inspect link plate bolt hole condition when replacing shoes.
• Link plate bolt holes visibly elongated or deformed — advanced stage of the loose shoe damage pattern. The link plates are structurally compromised at the bolt hole locations track chain replacement should be evaluated alongside the shoe replacement.
• Shoe body cracking or fracturing — impact damage from rock contact or material fatigue in the shoe body. A fractured shoe body cannot maintain correct bolt clamping and must be replaced immediately a loose or missing shoe creates a point load on the track chain that can fracture a link plate under operating loads.
• Caterpillar track shoe bolt hole wear — Cat track shoe bolt patterns are a specific configuration that requires Cat-specification bolt hardware. Non-specification bolts on a Caterpillar track shoe assembly lose torque faster than OEM-grade hardware.

Track Shoe Specifications, Getting the Right Assembly for Your Machine

Five parameters define the correct track shoe for your machine and application:

• Shoe width — must match the OEM specification for your machine model. Wider than OEM increases ground pressure management on soft terrain but must not exceed the machine's safe chain load envelope during turning.
• Bolt pattern and bolt circle dimensions — the shoe bolt hole pattern must match the link plate bolt hole pattern exactly. A mismatched bolt pattern cannot be corrected the shoe will not mount to the chain.
• Bolt grade and specification — track shoe bolts are subject to cyclic loading under operating conditions. Bolt grade must meet or exceed the OEM specification — under-grade bolts lose torque and produce the loose-shoe damage pattern that destroys both shoes and chain link plates.
• Grouser profile and height — confirmed for the application and operating environment. Single grouser for construction and mixed terrain. Triple grouser for soft ground and agricultural applications. Flat plate for surface-sensitive applications.
• Shoe body material and hardness — the shoe body must be hard enough to resist grouser wear on abrasive terrain without being brittle under the impact loads of rock and debris contact. Shoe body specification is confirmed against the OEM material grade for each machine weight class.

At Imara Engineering, every track shoe assembly order is confirmed against all five parameters using your machine serial number and operating environment. Provide your machine make, model, serial number, and primary working terrain and we confirm the correct track shoe specification before your order is placed.

Track Shoes by Machine Brand

Our track shoe inventory covers the most widely operated excavator and bulldozer brands all cross-referenced against OEM part numbers and forming part of our broader undercarriage parts range.

Caterpillar Track Shoes — covering the Cat mini excavator range and Cat bulldozer range from D4 through D9. Caterpillar track shoe specifications confirmed against Cat OEM part numbers for shoe width, bolt pattern, and grouser configuration. Cat D6 and D8 bulldozer track shoe assemblies are priority stock items.

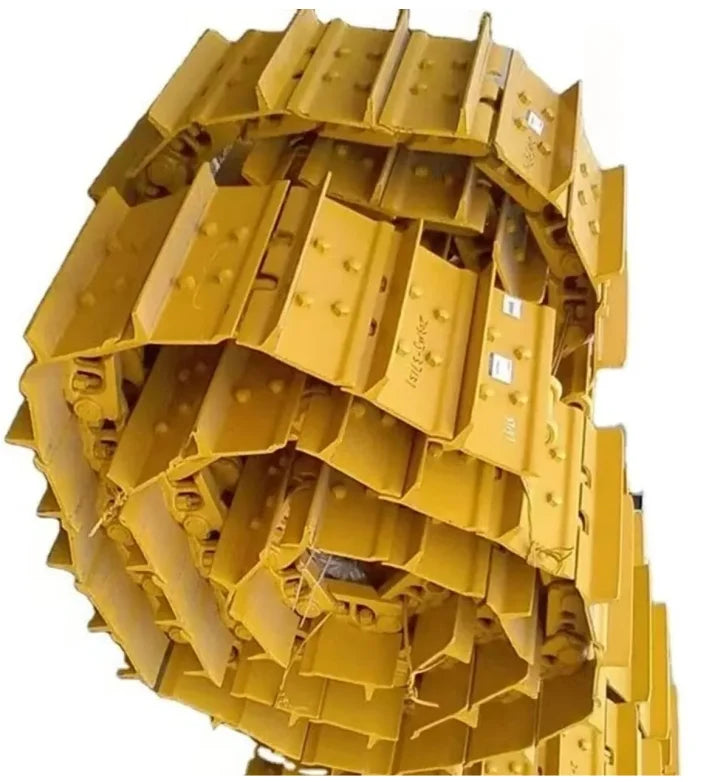

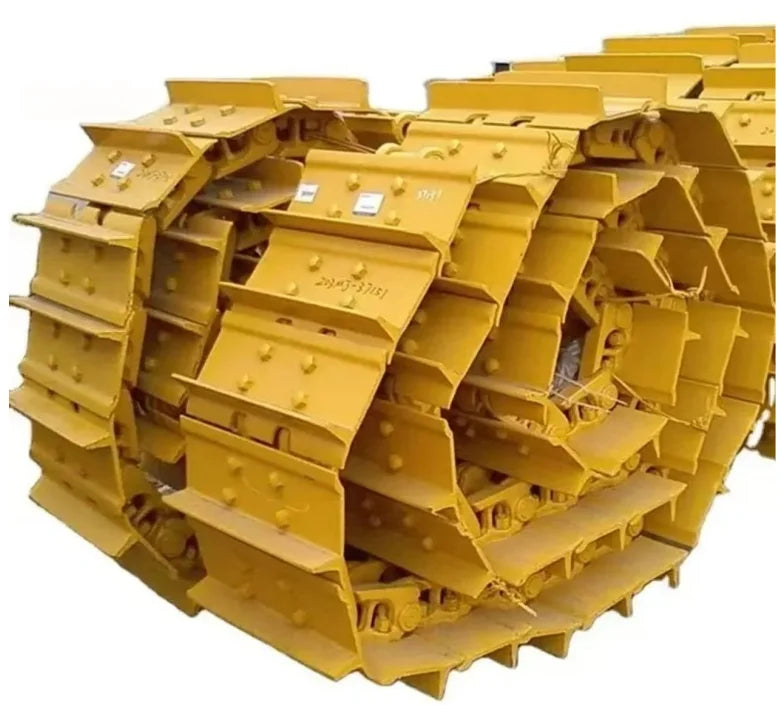

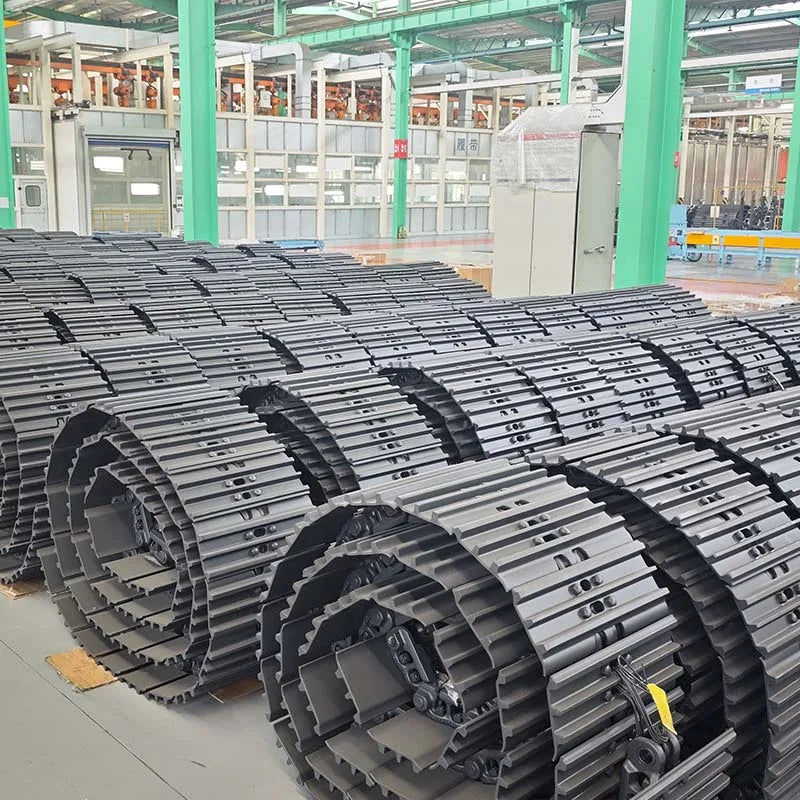

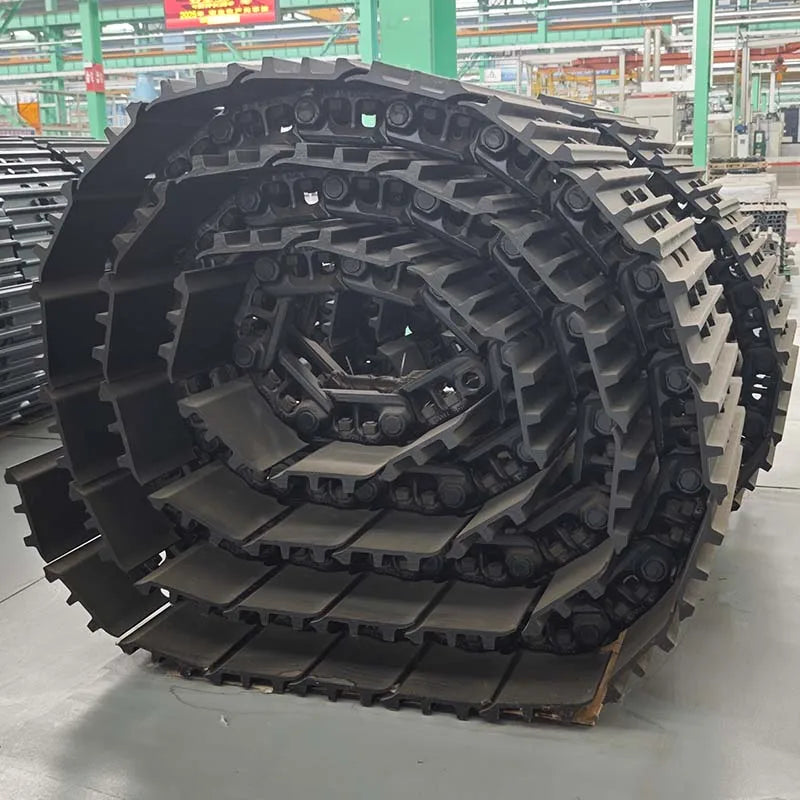

Komatsu Track Shoes — compatible with the PC series from PC15 through PC78 and larger models including the PC200, and the D series bulldozer range. Track shoe PC200 specifications in single and triple grouser configurations are priority stock items. Komatsu D series dozer track shoe assemblies stocked across D39 through D85.

Hitachi Track Shoes — stocked for the ZX series including ZX35, ZX50, ZX75, and ZX200. Confirmed against Hitachi OEM part numbers. Always specify the ZX model designation ZX200, not PC200 when ordering Hitachi undercarriage parts.

Other Brands — we also stock track shoes for Kubota, Bobcat, JCB, Takeuchi, Doosan, and Volvo excavators and for John Deere and Case bulldozers. Contact our team with your machine make, model, and serial number and we will confirm availability.

OEM Quality, What Every Track Shoe Assembly Is Built To

Every track shoe in our undercarriage parts range is held to four standards:

• Shoe body hardness confirmed against OEM specification — resisting grouser wear on abrasive terrain without brittleness under rock and debris impact loads
• Bolt grade confirmed to OEM torque specification — bolt hardware included with every track shoe assembly is confirmed to the grade and thread specification required to maintain correct clamping under cyclic operating loads
• Grouser profile confirmed to OEM geometry — grouser height and tip profile confirmed against the OEM specification for the machine model and application. Incorrect grouser geometry reduces traction and accelerates shoe wear simultaneously.
• Bolt hole pattern confirmed against track chain link plate specification — shoe bolt hole pattern confirmed against the OEM link plate specification for your machine model. A shoe that does not bolt correctly to the chain is not a shoe, it is a hazard.
