Carrier Rollers- The Undercarriage Component That Protects Your Track From Above

What Carrier Rollers Do And Why They Are the Most Overlooked Undercarriage Component

The carrier roller, also called a top roller, top track roller, or carrier idler sits on top of the track frame, positioned between the front idler and the drive sprocket. Its function is to support the upper run of the track chain or rubber track on its return path from the sprocket back to the front idler, preventing the track from sagging between those two points.

On a machine without carrier rollers, the track would hang loosely on its return run creating slack that generates impact loads as the track re-engages with the front idler and sprocket at each end of its travel. Carrier rollers eliminate that slack, maintaining consistent track geometry and distributing the tension load evenly across the upper return run.

The carrier roller is a sealed, oil-lubricated unit like the track roller beneath it, a hardened steel shell rotating on a shaft lubricated by an internal oil reservoir sealed by metal face seals. And like the track roller, it is the face seals that determine its service life. When those seals fail and the oil charge escapes, the carrier roller progresses from a smooth rotating support surface to a seized, stationary contact point that the track is dragged across with every revolution.

The damage mechanism is identical to a seized bottom roller but the location is different. A seized carrier roller creates its point load on the upper surface of the track, where the tension load of the full track return run is concentrated. On a rubber track machine, this point load creates the localised delamination pattern on the upper track surface that signals carrier roller failure. On a steel track machine, it creates accelerated link plate wear and in some cases link cracking directly above the seized roller position.

Warning Signs, When Your Carrier Rollers Need Replacing

Carrier roller failure announces itself through a consistent set of symptoms across both rubber track and steel track undercarriage systems. These are the signals that demand action not deferred maintenance:

• Oil weeping from the carrier roller area above the track frame — face seal failure. The internal oil charge is escaping and the roller is progressing toward seizure with every operating hour from this point.

• Flat spot or worn section visible on the carrier roller shell — the roller has seized and is being dragged across the track surface. On a rubber track machine this is visible as a section of the shell that is squared off rather than curved.

• Localised wear or delamination on the upper surface of the rubber track — point loading from a seized carrier roller concentrating the full track tension load on a single contact point. The track is telling you exactly which roller is the problem.

• Rhythmic noise or vibration during travel — a flat-spotted carrier roller creating a periodic impact as the deformed surface contacts the track with every revolution. On an excavator this is felt through the cab structure during travel.

• Track sagging between the idler and sprocket on the upper return run — a carrier roller that has failed completely and is no longer supporting the track. Visible as a pronounced sag in the upper track run when the machine is stationary.

• Mini excavator top roller replacement becoming frequent — on smaller machines the carrier roller carries a proportionally higher share of the track tension load. Mini excavator top roller wear accelerates faster than on larger machines when operating in abrasive or high-debris conditions.

Carrier Roller Specifications, Getting the Right Assembly for Your Machine

The carrier roller assembly specification for your machine is defined by four parameters and a mismatch on any one produces either a roller that does not fit the track frame mounting bracket or one that sits at the wrong height relative to the track, creating abnormal track running geometry:

• Shell outer diameter — must be matched to the track frame mounting geometry so the roller supports the track at the correct height above the frame. Too small and the track sags between support points. Too large and the track is forced upward, creating tension irregularities.

• Shell width and flange configuration — the carrier roller shell width must accommodate the full track width without the track edges overhanging the roller shell. On some machines the carrier roller carries a single central flange that engages the track chain guide groove.

• Shaft diameter and mounting bracket interface — must match the carrier roller mounting bracket on your track frame exactly. Carrier roller mounting configurations vary between machine brands and in some cases between production years of the same model.

• Face seal grade matched to operating environment — the face seal specification for a carrier roller dozer operating in abrasive mining conditions differs from that of a mini excavator top roller in a landscaping application. Seal grade is confirmed for each machine family and working environment.

At Imara Engineering, every carrier roller assembly order is confirmed against all four parameters using your machine serial number. Provide your machine make, model, and serial number and we confirm the exact carrier roller specification before your order is placed.

Carrier Rollers by Machine Brand

Our carrier roller inventory covers the most widely operated excavator and bulldozer brands all cross-referenced against OEM part numbers and all forming part of our broader undercarriage parts range.

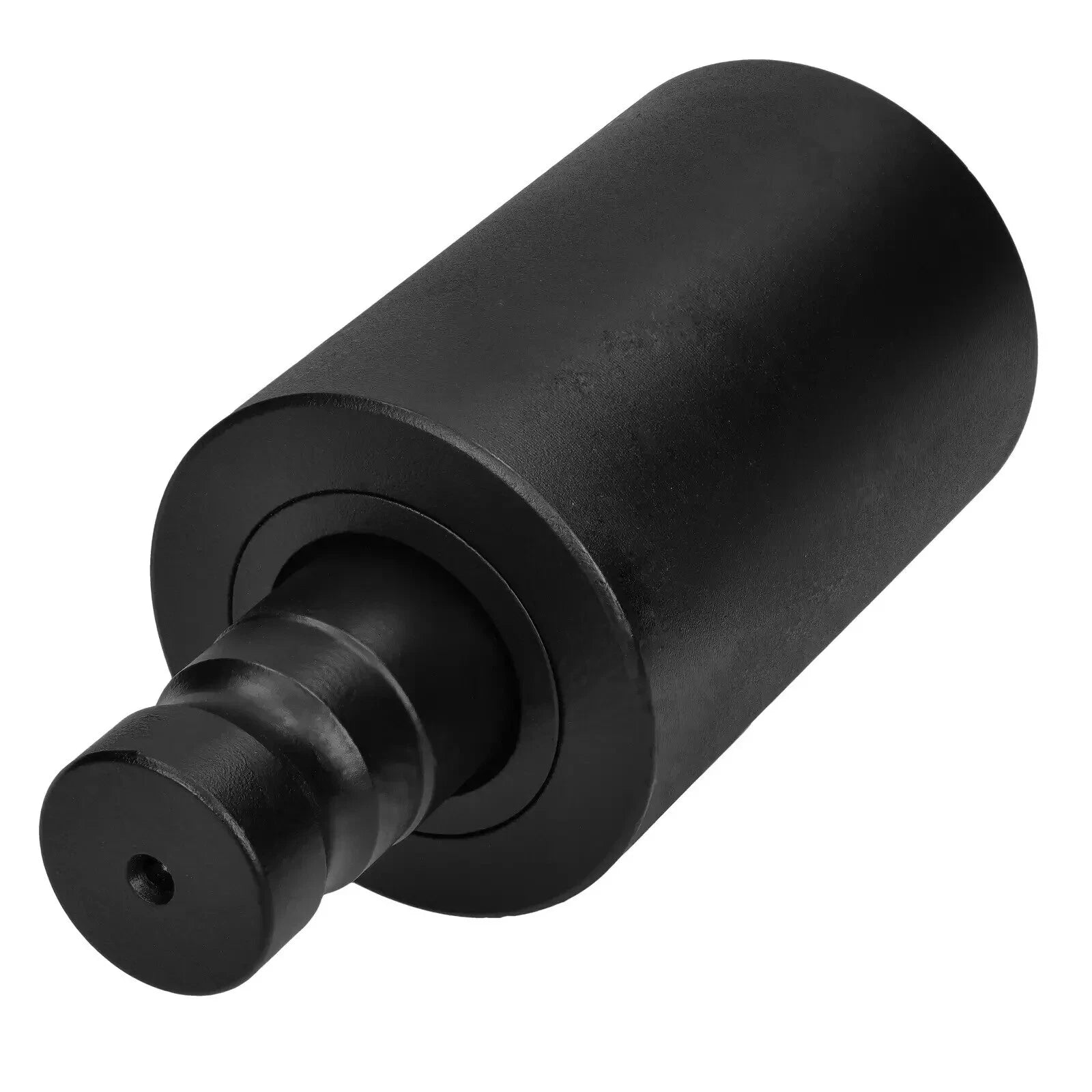

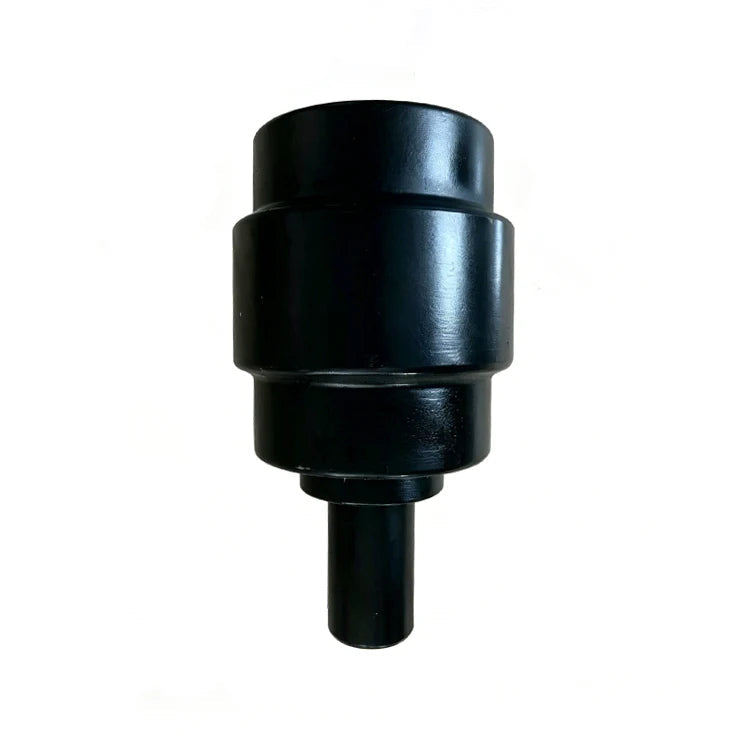

Caterpillar Carrier Rollers

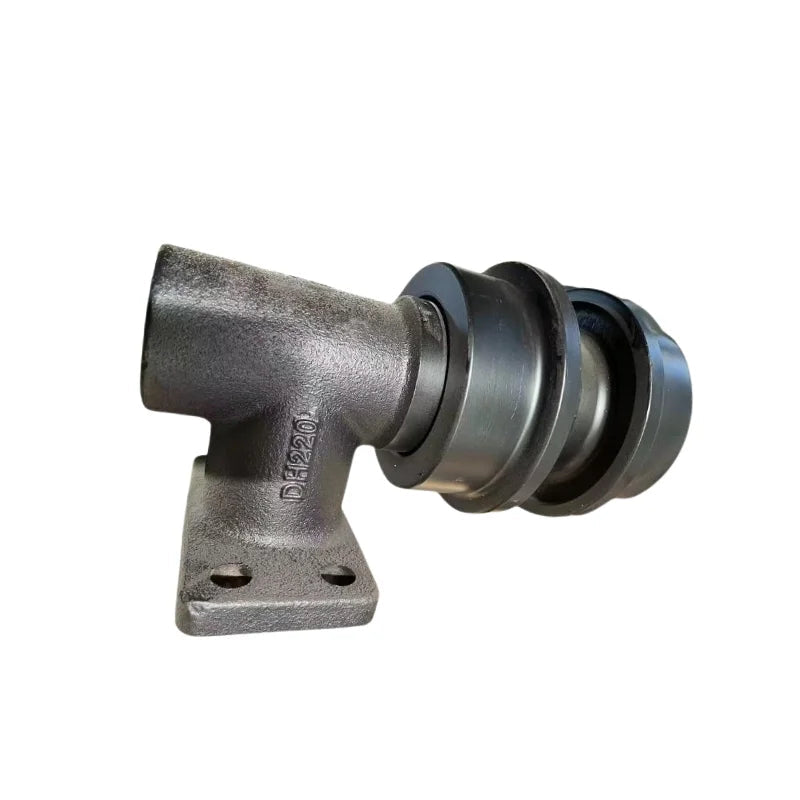

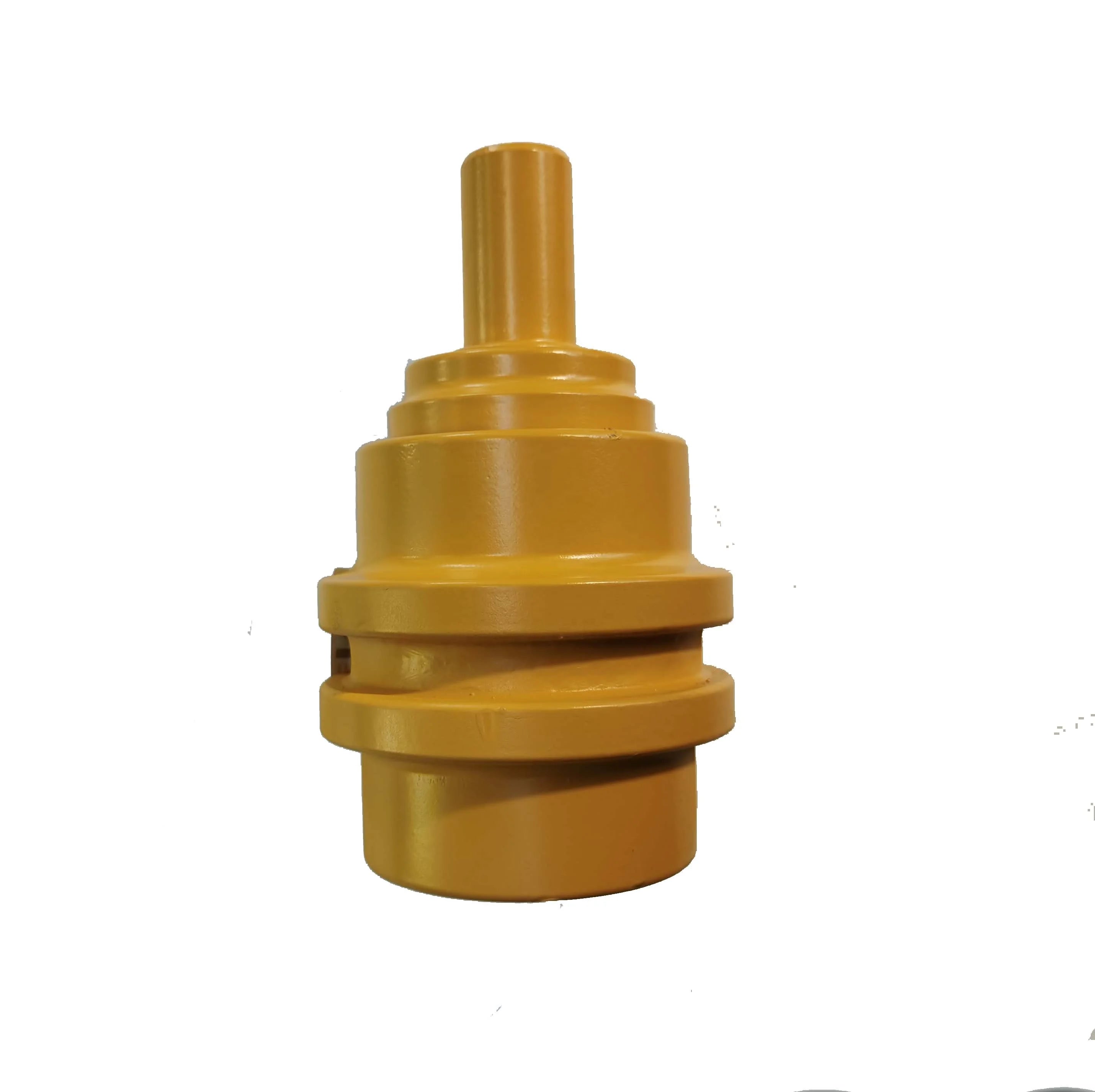

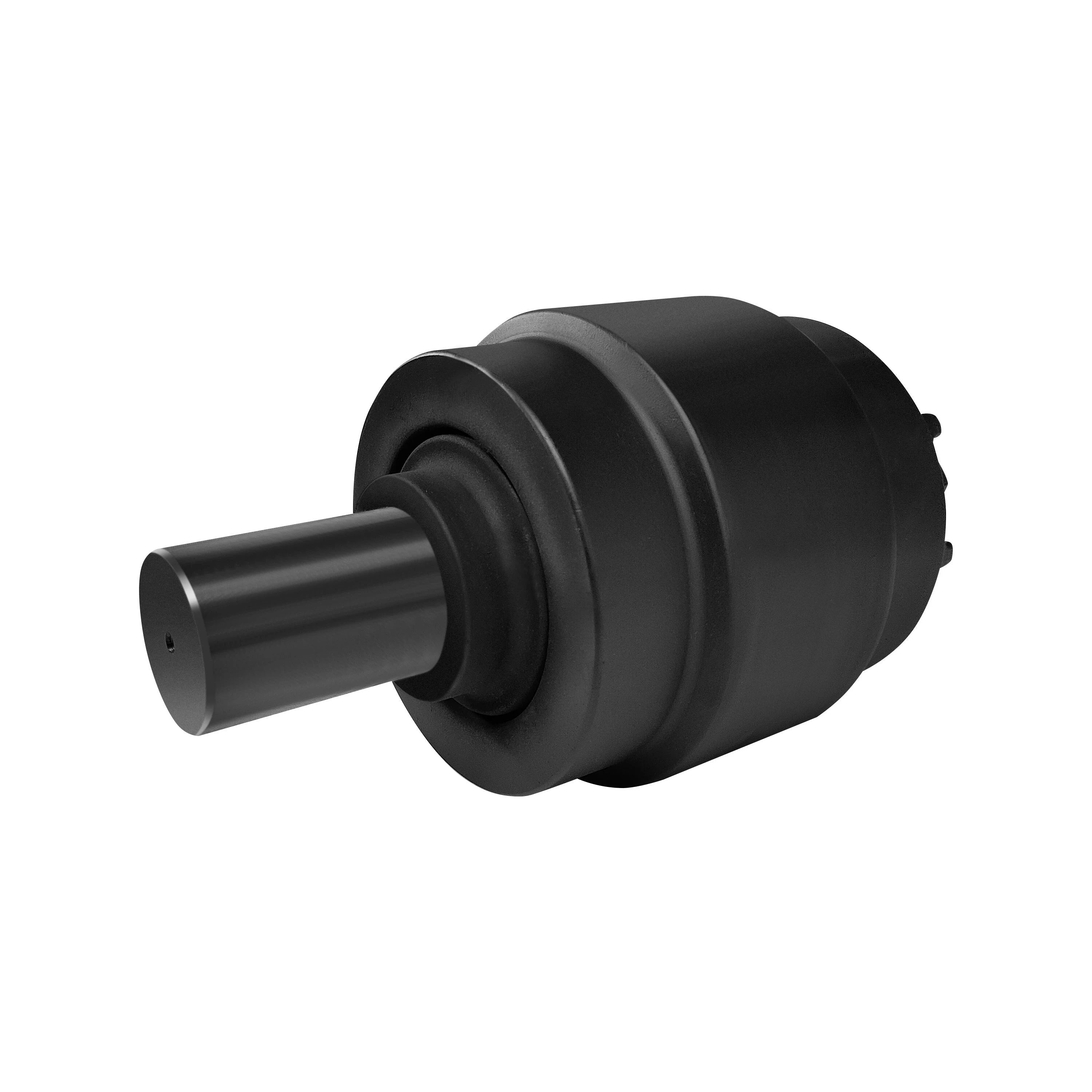

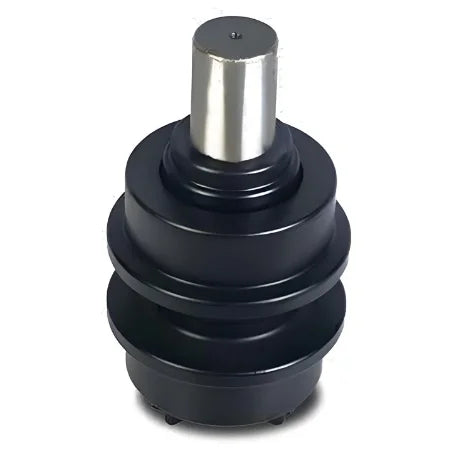

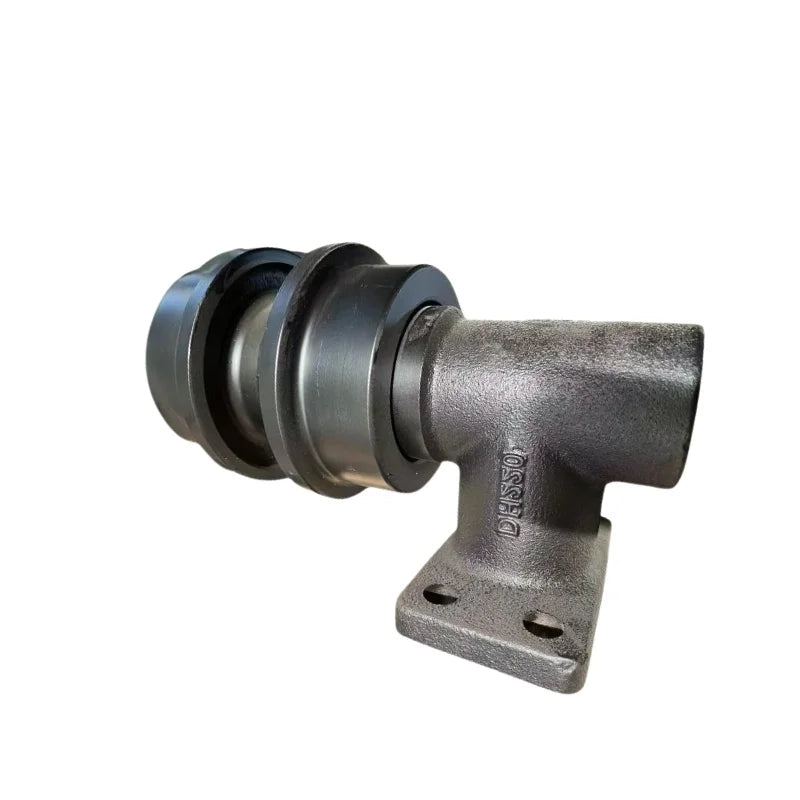

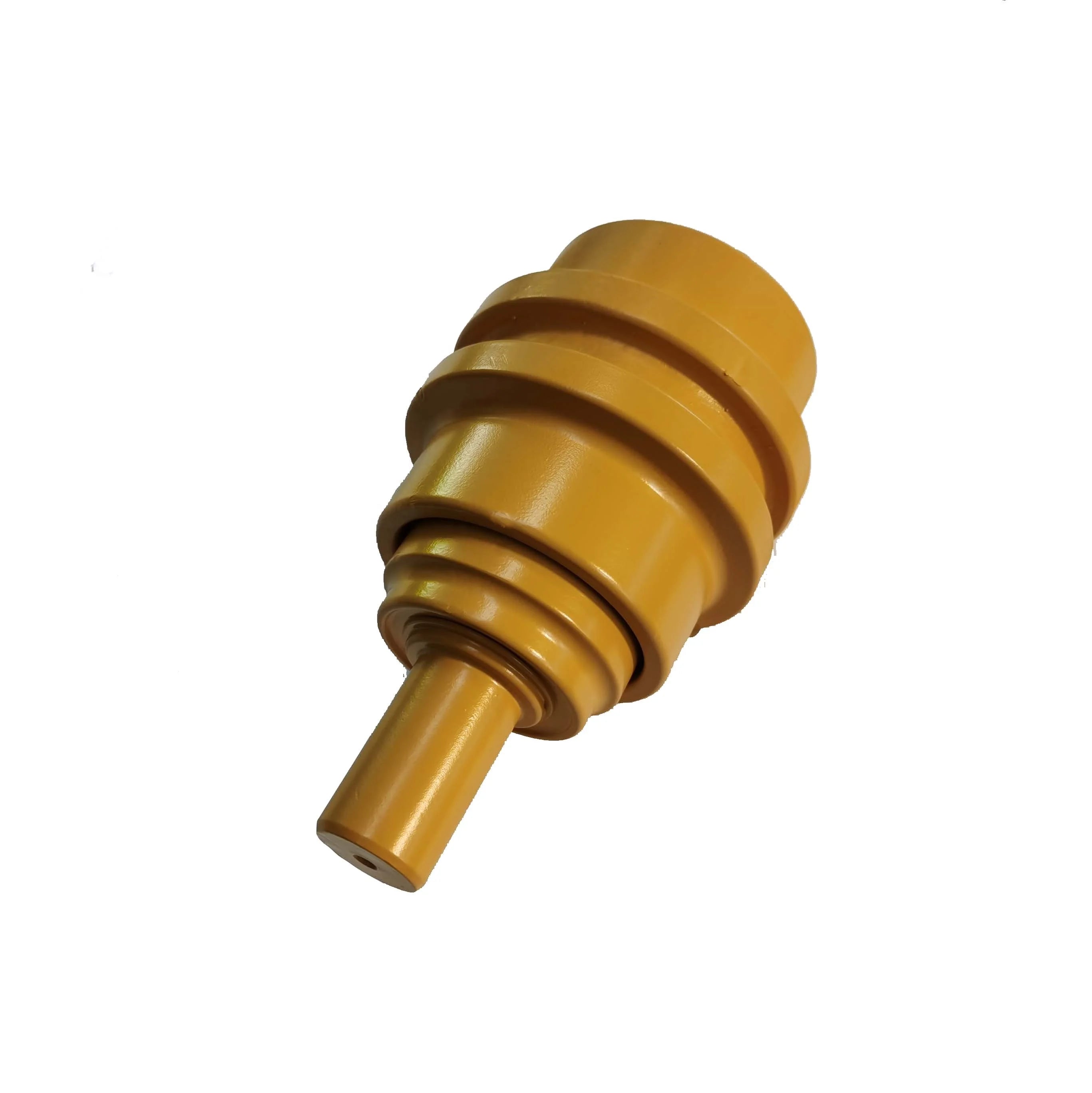

Covering the Cat mini excavator range including the 301, 302, 303, 305, and 308 series and the Cat bulldozer range including D4 through D9. Cat carrier roller assemblies are manufactured to the precise undercarriage geometry of each Cat model shell diameter, mounting interface, and face seal grade confirmed against Cat OEM part numbers. The Cat 303 and 305 top roller specifications are priority stock items.

Komatsu Carrier Rollers

Compatible with the PC series mini and compact excavator range from PC15 through PC78 and larger models including the PC200. The carrier roller PC200-8 is one of our most consistently demanded specifications. The PC200-8 is widely operated across global construction and civil fleets and its carrier roller replacement frequency reflects that operating intensity. Komatsu D series bulldozer carrier rollers are also stocked across the D39 through D85 range.

Hitachi Carrier Rollers

Stocked for the Hitachi ZX series mini and compact excavator range including ZX17, ZX26, ZX35, ZX50, ZX75, and the ZX200. Hitachi carrier roller assemblies are confirmed against Hitachi OEM part numbers for shell diameter, mounting configuration, and face seal specification across the ZX range. Always specify the ZX model designation when ordering Hitachi undercarriage parts ZX200, not PC200.

Other Brands

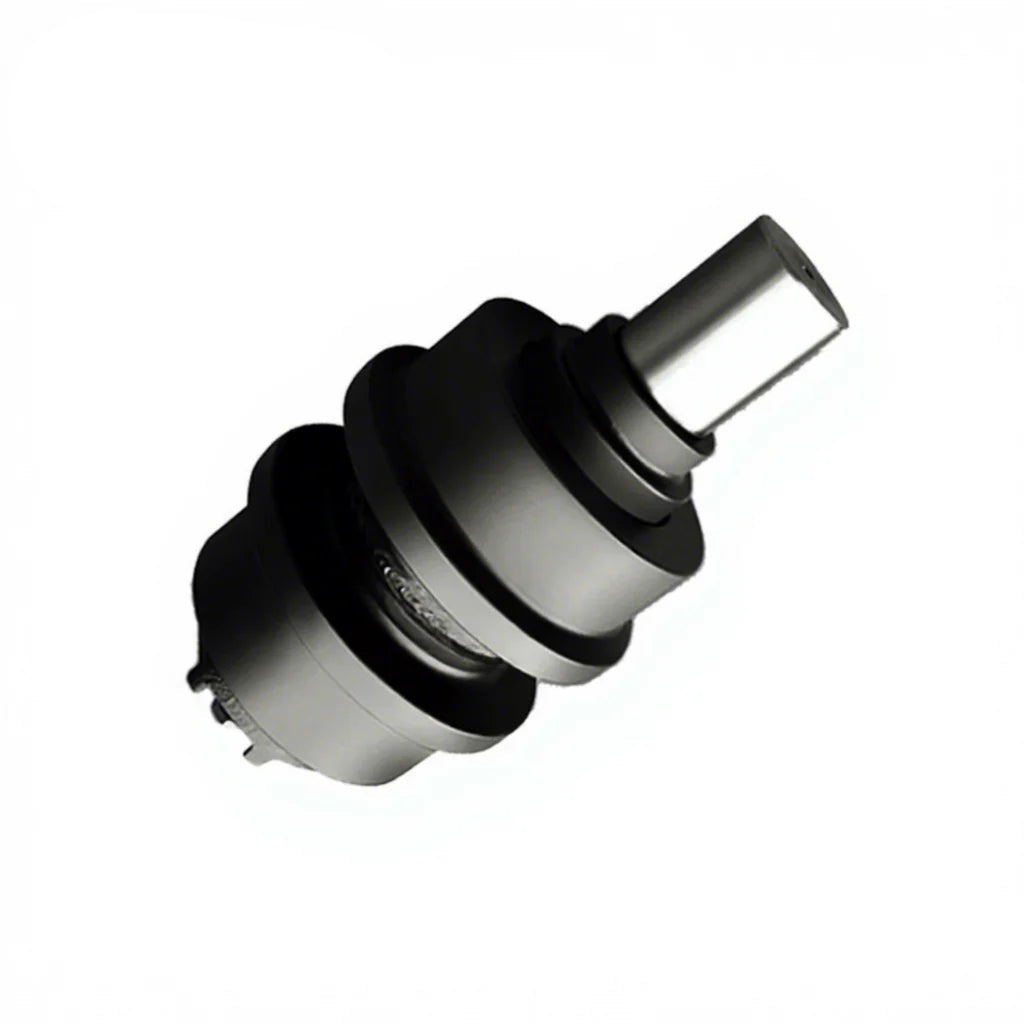

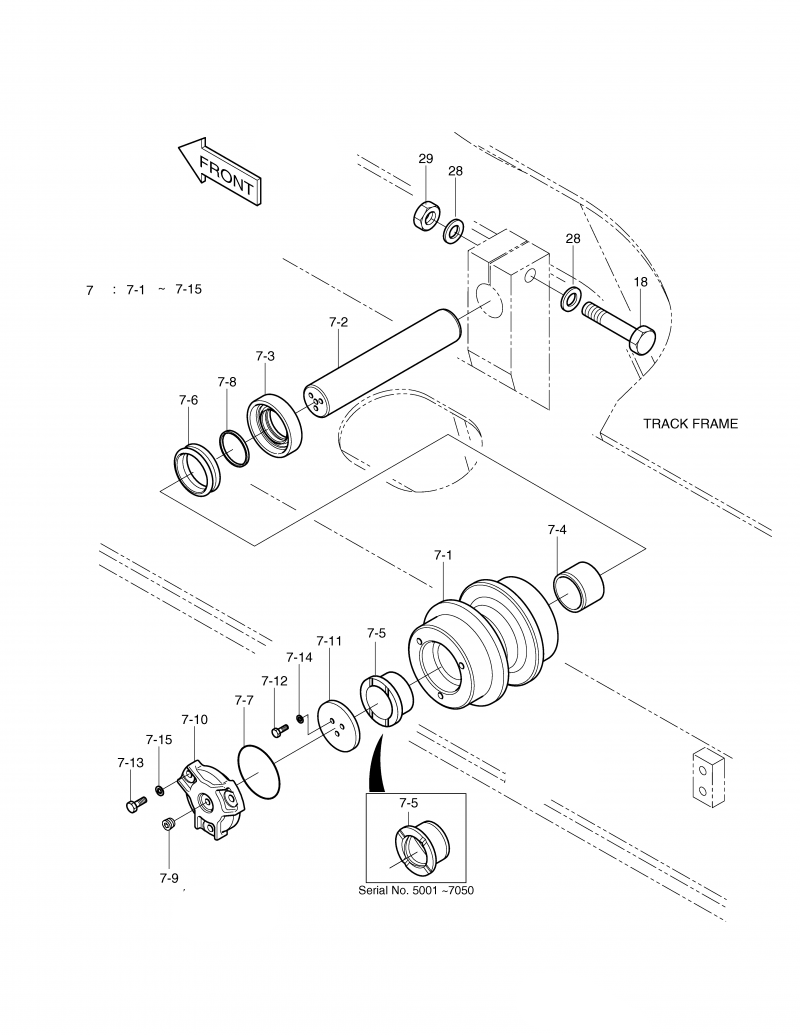

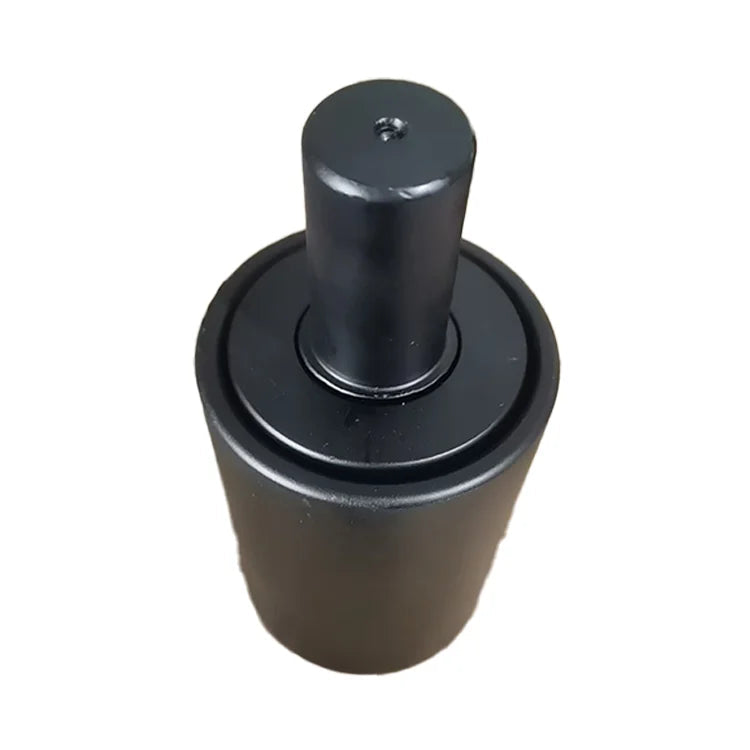

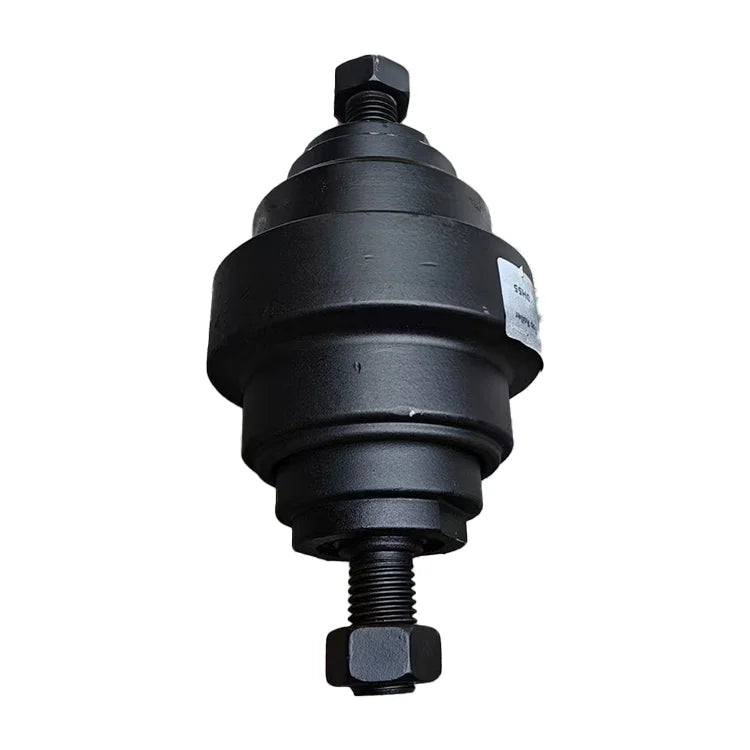

We also stock carrier rollers for Kubota, Bobcat, Yanmar, JCB, Takeuchi, Doosan, and Volvo excavators. Contact the Imara Engineering team with your machine make, model, and serial number and we will confirm availability.

OEM Quality, What Every Carrier Roller Assembly Is Built To

Every carrier roller assembly in our undercarriage parts range is held to the same four-point quality standard that applies across the complete Imara Engineering undercarriage range:

• Shell hardness matched to OEM specification — the carrier roller shell must resist the abrasive wear of continuous track contact without being brittle under the impact loads of debris and track irregularities on the upper return run

• Face seal grade confirmed for operating environment and machine type — carrier idler seal specification is confirmed for each machine family and application context. A carrier roller dozer operating in abrasive quarry conditions carries a different seal specification from a mini excavator top roller in landscaping use.

• Internal oil volume and lubricant grade confirmed for operating temperature range — correct oil charge volume and viscosity ensures lubrication across the full service interval without oil starvation following minor seal weeping

• Mounting interface confirmed against OEM bracket specification — shell diameter, shaft dimensions, and mounting bracket interface confirmed against the OEM parts database for your specific machine model and serial number

OEM carrier rollers carry a brand premium above equivalent quality aftermarket specification. At Imara Engineering, the specification standard, seal grade confirmation, and fitment guarantee are the same. The premium is not.

Carrier Rollers in the Context of the Full Undercarriage System

Carrier rollers do not wear in isolation; they are part of a connected undercarriage system where the condition of every component affects every other. Three system relationships most directly affect carrier roller service life:

• Track tension — an over-tensioned track places the carrier roller under a higher load than it was designed for, accelerating both shell wear and face seal degradation. Correct track tension — checked and adjusted every 250 operating hours — protects carrier rollers as much as it protects bottom rollers and rubber tracks.

• Track condition — a rubber track with surface delamination or a steel track chain with worn link plates creates an uneven contact surface that generates impact loads on the carrier roller shell with every revolution. Carrier roller wear accelerates when the track surface it runs across is itself degraded.

• Idler and sprocket alignment — a misaligned front idler or worn sprocket causes the track to run off-centre across the carrier roller shell, creating asymmetric wear that shortens carrier roller service life significantly. Inspect idler alignment and sprocket tooth condition alongside every carrier roller replacement.

Industries We Supply Carrier Rollers To

• Construction & Civil Engineering — excavator and bulldozer carrier roller assemblies for machines on active construction programmes. Top roller condition directly affects rubber track service life — a seized carrier roller on a construction excavator turns a track inspection into an unplanned track replacement.

• Mining & Quarrying — carrier roller dozer specifications for machines operating in the most abrasive conditions in the tracked machine category. Face seal specification for abrasive dust environments and shell hardness for high-load continuous running are non-negotiable in quarry applications.

• Agriculture & Land Management — compact excavator and bulldozer carrier rollers for machines operating in wet, muddy conditions where face seal specification for high-moisture environments determines service life.

• Landscaping & Garden Construction — mini excavator top roller replacement for U series, KX series, and E series machines. On smaller machines the carrier roller carries a proportionally higher share of the track tension load — replacement frequency is higher than operators typically expect.

• Plant Hire & Rental Fleets — carrier roller assemblies across mixed-brand hire fleets where consistent quality and reliable lead times define the supplier relationship. Imara Engineering supplies hire operators with trade pricing and serial number verified specifications as standard.
