Piston Rings & Pistons for CAT, Cummins & Heavy Diesel Engines

What Pistons and Piston Rings Do and Why They Wear

Inside a running diesel engine, the piston travels the full length of the cylinder liner bore on every combustion cycle, from bottom dead centre to top dead centre and back at speeds and under pressures that place extreme demands on both the piston itself and the ring package seated in its grooves.

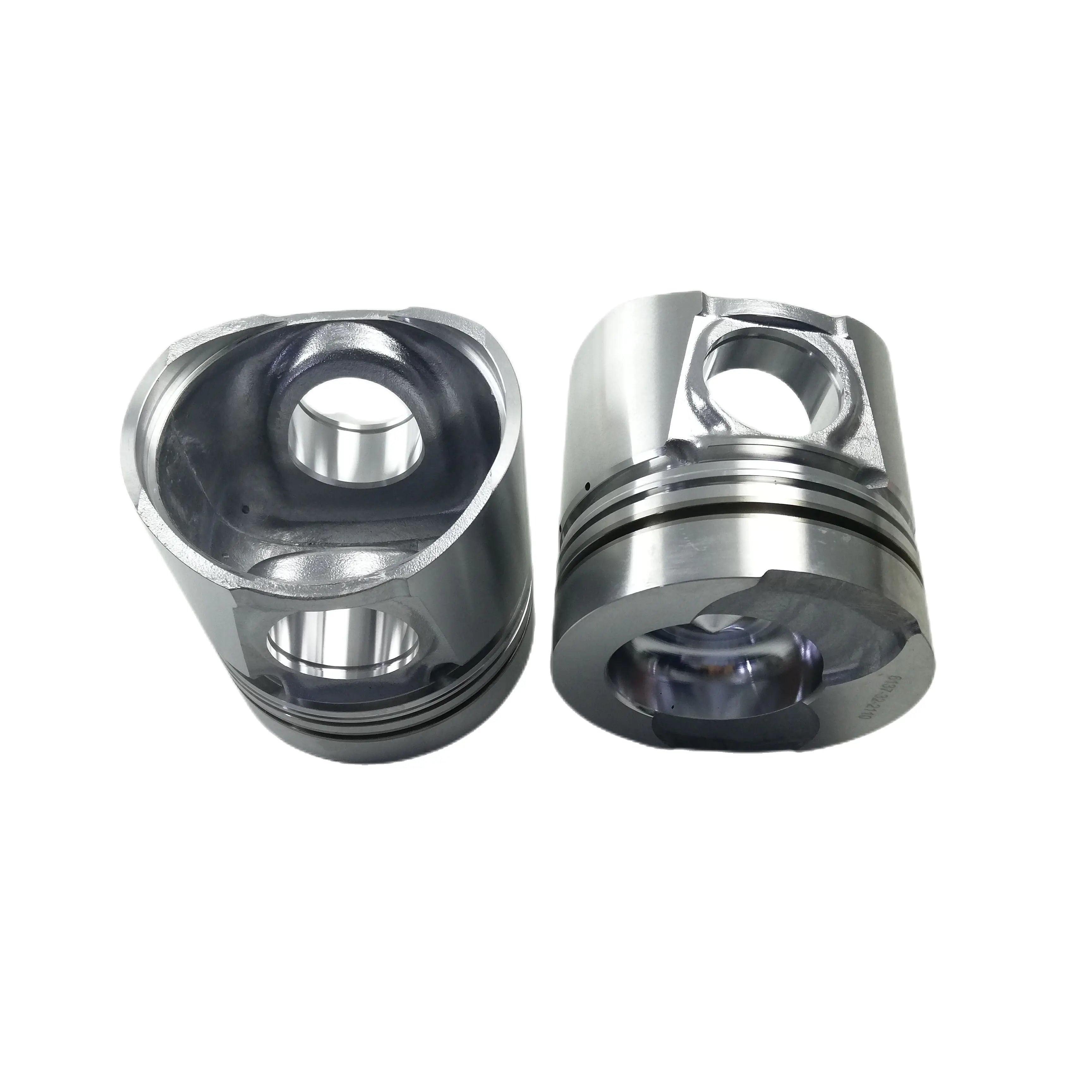

The piston performs three simultaneous functions on every cycle:

• Compression — the piston travels upward to compress the air charge in the combustion chamber before injection, generating the compression ratio that the diesel combustion process depends on
• Power transmission — the piston receives the full force of combustion on its crown and transmits it through the connecting rod to the crankshaft below
• Heat dissipation — the piston crown absorbs enormous heat energy from combustion and transfers it outward through the ring package and cylinder liner wall into the cooling system

The piston ring package, typically comprising a top compression ring, a second compression ring, and an oil control ring, performs the critical function of sealing all three of these processes simultaneously. The top ring seals combustion pressure. The second ring provides secondary compression sealing and assists oil control. The oil control ring regulates the oil film on the liner wall, maintaining enough lubrication for the ring and liner interface while preventing excess oil from entering the combustion chamber.

As rings wear, this balance deteriorates. The consequences are progressive and recognisable:

• Blow-by — combustion gases bypass the worn ring and liner interface, pressurising the crankcase and contaminating the engine oil
• Oil consumption — worn oil control rings allow excess oil onto the liner wall, where it enters the combustion chamber and is burned
• Power loss — reduced compression ratio from worn top rings reduces combustion efficiency and power output
• Increased emissions — both blow-by gases and combusted oil raise exhaust emissions, often triggering emissions compliance issues on regulated equipment

CAT Pistons & Piston Rings: Full Platform Coverage

Caterpillar diesel engines represent the highest demand for pistons and piston rings across our range. The CAT C15 and particularly the C15 ACERT variant carry a well-documented history of piston ring wear at high engine hours, driven by the higher cylinder pressures and operating temperatures the ACERT combustion system produces. The 3406 and 3406E are similarly high-demand platforms, reflecting the enormous number of these engines still in active heavy-duty service globally.

Our CAT pistons and rings range covers:

• CAT C15 & C15 ACERT — the highest-demand platform in our range, with ring sets and complete piston assemblies available for both the standard C15 and the ACERT variant
• CAT 3406, 3406E & 3406B — the most rebuilt CAT engine family in heavy industry, requiring exact ring gap and piston crown specification matching for correct compression geometry
• CAT 3306 — a widely deployed legacy platform with strong ongoing pistons and rings demand
• CAT 3208 — a reliable multi-application platform with broad parts support across our range
• CAT C13 — a high-torque mid-range platform deployed across large excavators and heavy plant equipment

All CAT pistons are supplied with the correct ring set for the platform. Ring sets are also available individually for engines where only the rings require replacement on a top-end overhaul.

Cummins Pistons & Piston Rings, ISX and Heavy Diesel Platforms

Cummins diesel engines are deployed across some of the most demanding heavy equipment and over-the-road applications globally. The ISX and ISX15 platforms are the highest-demand Cummins engines in our pistons and rings range, reflecting both the volume of ISX-powered machines in service and the known ring wear characteristics of this platform at high engine hours.

Our Cummins pistons and rings range covers:

• Cummins ISX & ISX15 — the most widely replaced Cummins piston and ring platform in our range, available as complete piston assemblies or ring sets

• Cummins N14 — a high-torque legacy platform with strong ongoing parts demand across heavy plant and on-highway applications

• Cummins 6BT & 4BT — compact and mid-range Cummins platforms widely used in excavators and light plant equipment

All Cummins pistons and ring sets are manufactured to OEM dimensional tolerances for correct ring gap, end seal, and piston-to-liner clearance specifications.

Pistons vs Piston Rings, Choosing the Right Replacement Scope

One of the most common decisions workshop managers face during a diesel engine overhaul is whether to replace the full piston assembly or only the piston rings. The correct answer depends on what the inspection reveals, and getting this decision right avoids premature re-failure.

Replace rings only when:

• The piston crown and skirt are dimensionally within OEM tolerance on measurement
• There is no visible cracking, erosion, or burning on the piston crown
• The ring grooves are within OEM width tolerance, worn grooves allow rings to flutter and lose seal, regardless of the ring condition
• The piston-to-liner clearance is within OEM specification

Replace the full piston assembly when:

• The piston crown shows burning, erosion, or cracking from detonation or overheating
• Ring groove wear has taken the groove width beyond OEM tolerance
• The piston skirt shows scoring or wear beyond acceptable dimensional limits
• A new cylinder liner is being fitted. New liners should always be paired with new pistons for correct bore bedding

At Imara Engineering, we stock both complete piston assemblies and ring sets for all platforms in our range. Our team can advise on the correct replacement scope for your specific engine condition if you are unsure which option is right for your overhaul.

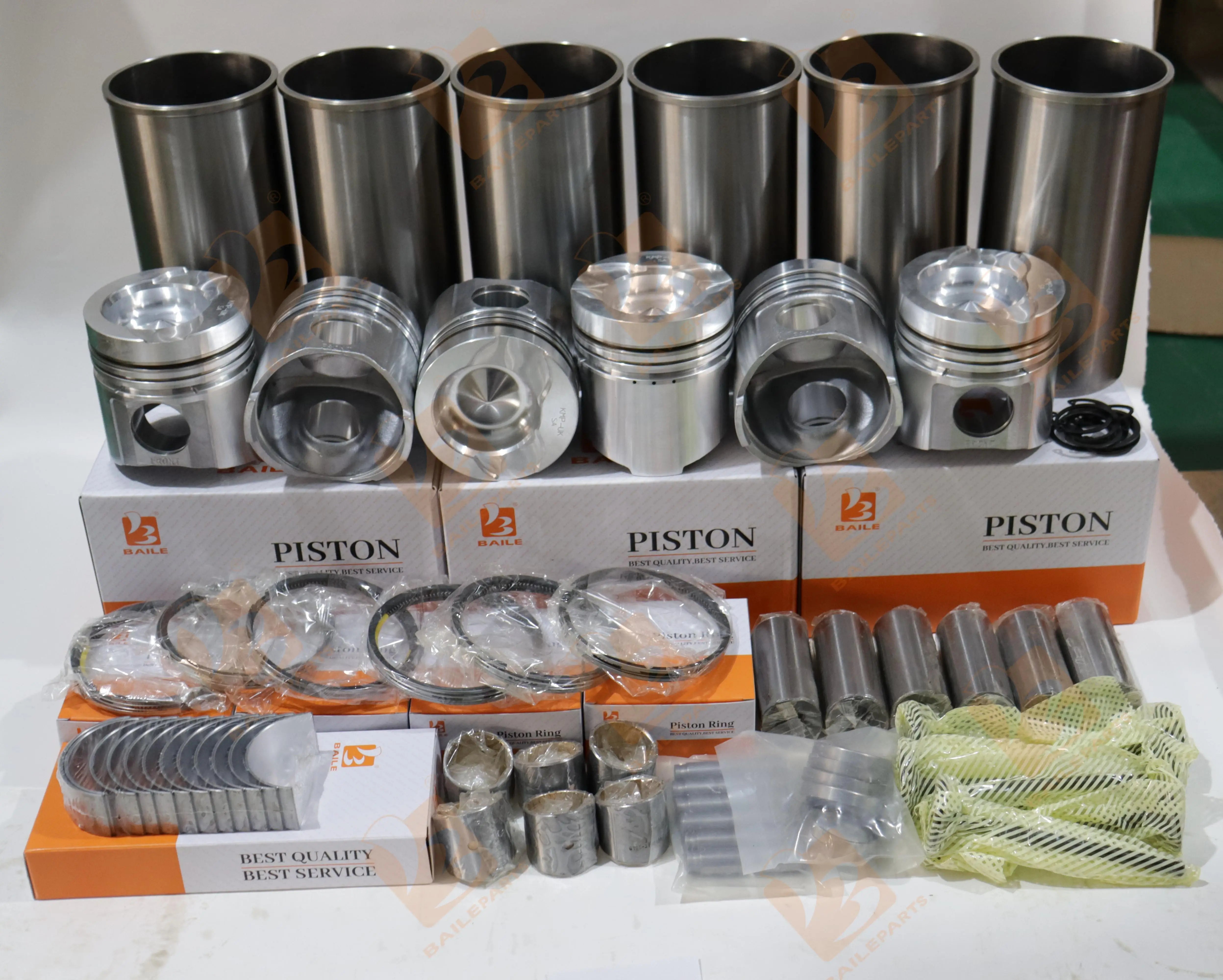

What to Replace at the Same Time as Your Pistons & Rings

Pistons and rings do not operate in isolation. For a diesel engine rebuild to hold long-term, the components that work directly alongside them must be in the same serviceable condition. Fitting new pistons and rings to worn associated components accelerates re-wear from the first hours of operation.

At Imara Engineering, we recommend sourcing the following alongside your pistons and rings:

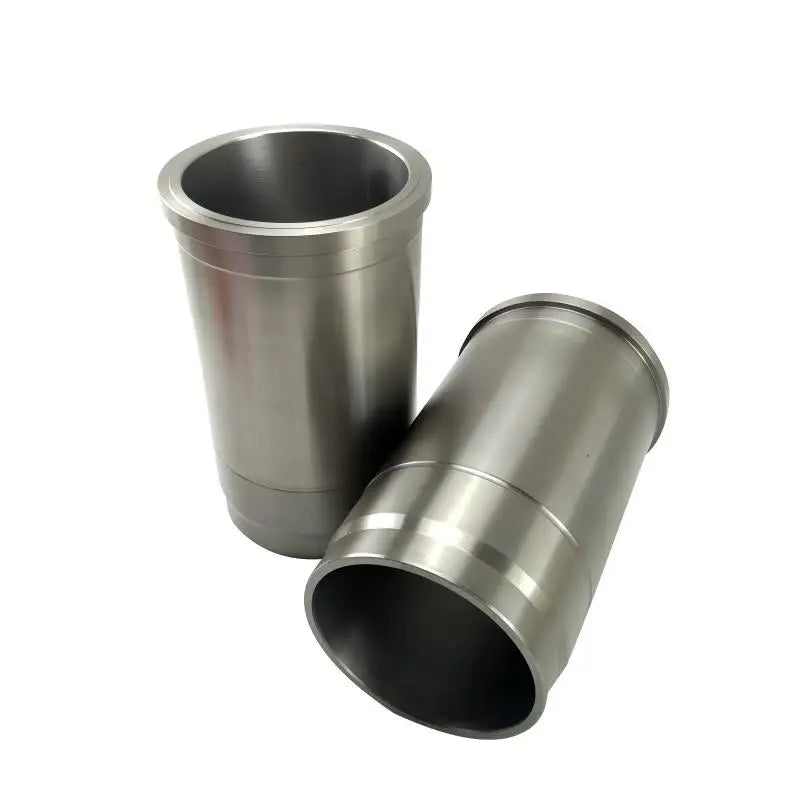

• Cylinder liners — new pistons and rings must always be paired with cylinder liners that are within OEM bore tolerance. Browse our Cylinder Liners range for matched sets across all major platforms.
• Piston ring compressor tool — a ring compressor is required for correct piston installation without ring damage. CAT and ISX-specific ring compressors are available. Contact our team for confirmation of the correct tool for your platform.
• Connecting rod bearings — if the engine is apart to the level of piston removal, connecting rod bearing inspection and replacement should always be carried out at the same time
• Gasket kit and rebuild kit — a full top-end gasket kit is required whenever the cylinder head is removed as part of the overhaul. Browse our Gasket Kits and Rebuild Kits range for full platform coverage.

Our team can consolidate all components into a single order to reduce sourcing administration and eliminate the risk of a missing component halting your rebuild.

Why Source Your Pistons & Rings from Imara Engineering?

Workshop managers and fleet operators across Australia, North America, Canada, and globally choose Imara Engineering for pistons and piston rings because dimensional precision is everything in this category — and we do not compromise on specification.

• OEM Dimensional Tolerances — Ring gap, end seal, piston crown geometry, and skirt clearance are all manufactured to OEM specifications. Correct dimensions are what seal combustion pressure and make a rebuild last.
• Confirmed Fitment Before Dispatch — Engine serial number and platform variant cross-referenced before every order ships. C15 or C15 ACERT, 3406E or 3406B, the correct specification confirmed before dispatch.
• Complete Assemblies or Ring Sets — Whether you need a full piston assembly or rings only, we supply the configuration that matches your overhaul scope.
• Associated Components Available — Cylinder liners, ring compressors, gasket kits, and connecting rod bearings are available alongside your pistons and rings in a single consolidated order.
• Fast Worldwide Shipping — Dispatching to Australia, USA, Canada, and internationally with full tracking and fast turnaround on all in-stock items.
